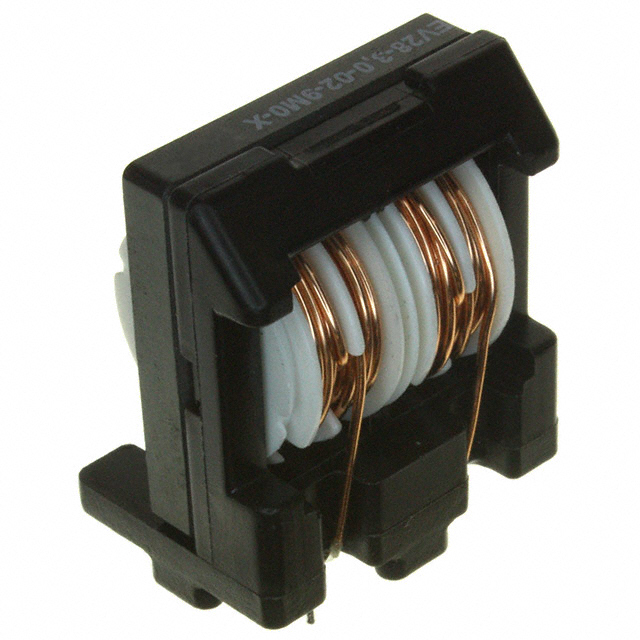

EV28-3.0-02-9M0-X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EV28-3.0-02-9M0-X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EV28-3.0-02-9M0-X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EV28-3.0-02-9M0-X |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 9MH 3A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.115 | $1.022 | $0.669 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.594 | $0.557 | $0.549 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EV28-3.0-02-9M0-X | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | COMMON MODE CHOKE 9MH 3A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54324 pcs | Data sheet | EV28-3.0-02-9M0-X |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.150" L x 0.827" W (29.20mm x 21.00mm) |
| Series | EV | Ratings | - |
| Packaging | Tube | Package / Case | Vertical, 4 PC Pin |
| Other Names | 298-193 801321 817-1050 EV28-3,0-02-9M0-X EV2830029M0X |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 9mH @ 400Hz | Height (Max) | 1.406" (35.70mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 9mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 115 mOhm | DC Resistance (DCR) (Max) | 115 mOhm |
| Current Rating (Max) | 3A | Approvals | - |
