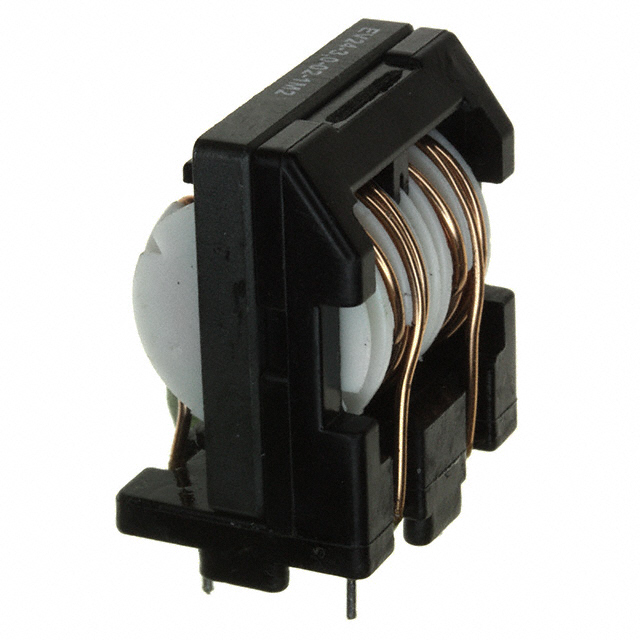

EV24-3.0-02-1M2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EV24-3.0-02-1M2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EV24-3.0-02-1M2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EV24-3.0-02-1M2 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 1.2MH 3A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.894 | $0.824 | $0.577 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.467 | $0.426 | $0.412 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EV24-3.0-02-1M2 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 1.2MH 3A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93955 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.969" L x 0.685" W (24.60mm x 17.40mm) |
| Series | EV | Ratings | - |
| Packaging | Tube | Package / Case | Vertical, 4 PC Pin |
| Other Names | 295-506 801059 817-1043 EV24-3,0-02-1M2 EV2430021M2 |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 1.2mH @ 400Hz | Height (Max) | 1.185" (30.10mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 1.2mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 29 mOhm (Typ) | DC Resistance (DCR) (Max) | 29 mOhm (Typ) |
| Current Rating (Max) | 3A | Approvals | - |
