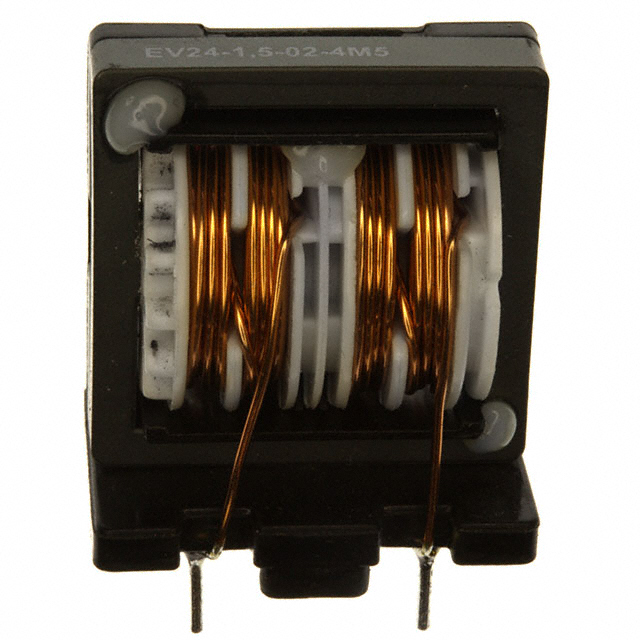

EV24-1.5-02-4M5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EV24-1.5-02-4M5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EV24-1.5-02-4M5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EV24-1.5-02-4M5 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 4.5MH 1.5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.872 | $0.804 | $0.563 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.456 | $0.416 | $0.402 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EV24-1.5-02-4M5 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 4.5MH 1.5A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96318 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.969" L x 0.685" W (24.60mm x 17.40mm) |
| Series | EV | Ratings | - |
| Packaging | Tube | Package / Case | Vertical, 4 PC Pin |
| Other Names | 295-504 801057 817-1041 EV24-1,5-02-4M5 EV2415024M5 |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 4.5mH @ 400Hz | Height (Max) | 1.185" (30.10mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 4.5mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 116 mOhm (Typ) | DC Resistance (DCR) (Max) | 116 mOhm (Typ) |
| Current Rating (Max) | 1.5A | Approvals | - |
