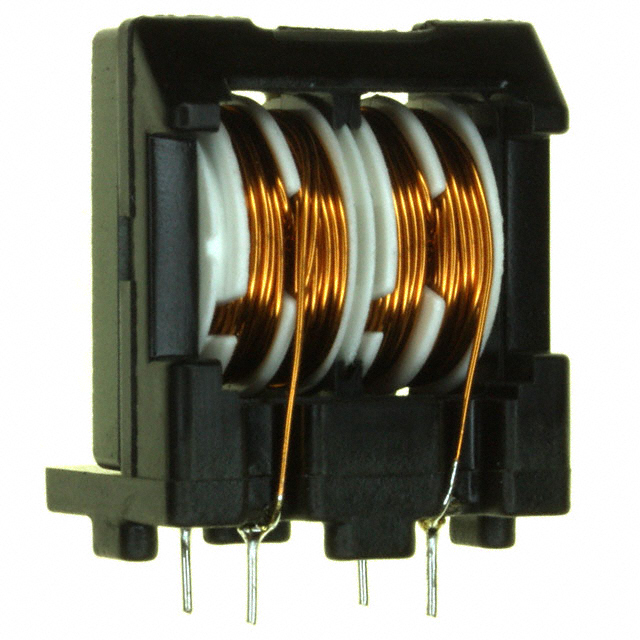

EV28-1.5-02-20M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EV28-1.5-02-20M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EV28-1.5-02-20M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EV28-1.5-02-20M |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 20MH 1.5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.09 | $0.999 | $0.654 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.581 | $0.545 | $0.537 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EV28-1.5-02-20M | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 20MH 1.5A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62151 pcs | Data sheet | EV,EH Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.150" L x 0.827" W (29.20mm x 21.00mm) |
| Series | EV | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 295-509 801062 817-1046 EV28-1,5-02-20M EV28150220M |
Operating Temperature | -25°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 20mH @ 400Hz | Height (Max) | 1.406" (35.70mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 20mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282 mOhm (Typ) | DC Resistance (DCR) (Max) | 282 mOhm (Typ) |
| Current Rating (Max) | 1.5A | Approvals | - |
