Home > Products > Integrated Circuits (ICs) > Interface - Analog Switches - Special Purpose > STG3696EQTR

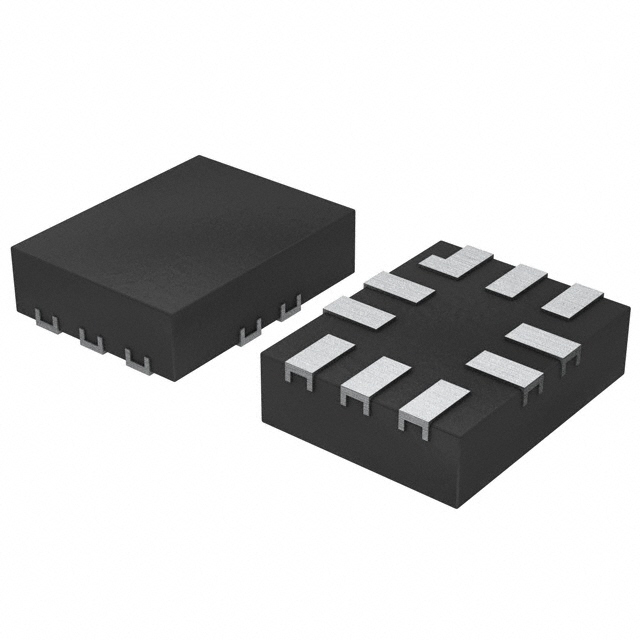

STG3696EQTR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STG3696EQTR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STG3696EQTR
Manufacturer	STMicroelectronics
Description	IC SWITCH SPDT USB/AUDIO 10-QFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 179537 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.131

Product parameter
Data sheet

Product parameter

Part Number	STG3696EQTR	Manufacturer	STMicroelectronics
Description	IC SWITCH SPDT USB/AUDIO 10-QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	179537 pcs	Data sheet	STG3696E
Category	Integrated Circuits (ICs)	Voltage - Supply, Single (V+)	2.7 V ~ 4.5 V
Voltage - Supply, Dual (V±)	-	Switch Circuit	SPDT
Supplier Device Package	10-QFN (1.8x1.4)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	10-UFQFN
Other Names	497-11015-2	Operating Temperature	-40°C ~ 85°C (TA)
On-State Resistance (Max)	5 Ohm	Number of Channels	2
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	40 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	USB 2.0	Detailed Description	Audio, USB Switch IC 2 Channel 10-QFN (1.8x1.4)
Base Part Number	STG3696	Applications	Audio, USB
-3db Bandwidth	850MHz
