Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Modules > STG3P2M10N60B

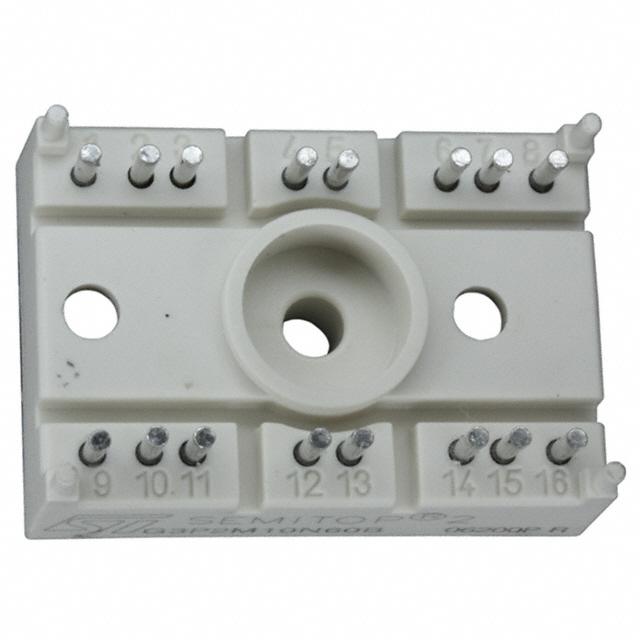

STG3P2M10N60B

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STG3P2M10N60B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STG3P2M10N60B
Manufacturer	STMicroelectronics
Description	IGBT N-CHAN 600V 19A SEMITOP2
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5407 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	STG3P2M10N60B	Manufacturer	STMicroelectronics
Description	IGBT N-CHAN 600V 19A SEMITOP2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5407 pcs	Data sheet	STG3P2M10N60B
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	600V
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 7A	Supplier Device Package	SEMITOP®2
Series	SEMITOP®	Power - Max	56W
Package / Case	SEMITOP®2	Other Names	497-5216
Operating Temperature	-40°C ~ 150°C (TJ)	NTC Thermistor	No
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	0.72nF @ 25V
Input	Single Phase Bridge Rectifier	IGBT Type	-
Detailed Description	IGBT Module Three Phase Inverter 600V 19A 56W Chassis Mount SEMITOP®2	Current - Collector Cutoff (Max)	10µA
Current - Collector (Ic) (Max)	19A	Configuration	Three Phase Inverter

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
