Home > Products > Integrated Circuits (ICs) > Interface - Analog Switches, Multiplexers, Demulti > STG3693QTR

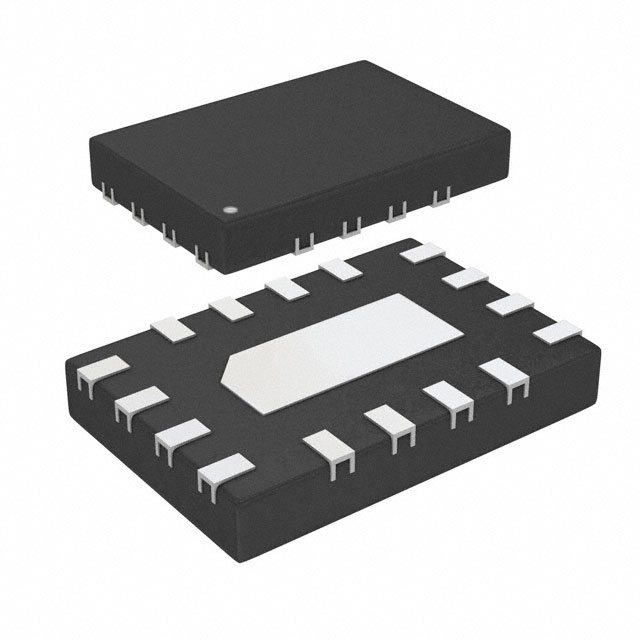

STG3693QTR

STG3693QTR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STG3693QTR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number STG3693QTR
Manufacturer STMicroelectronics
Description IC SWITCH QUAD SPDT 16QFN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 134236 pcs
Reference Price
(In US Dollars)		3000 pcs6000 pcs15000 pcs
$0.157$0.149$0.144

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.157

Product parameter

Part Number STG3693QTR Manufacturer STMicroelectronics
Description IC SWITCH QUAD SPDT 16QFN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 134236 pcs Data sheet STG3693
Category Integrated Circuits (ICs) Voltage - Supply, Single (V+) 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) - Switch Time (Ton, Toff) (Max) 15ns, 5ns
Switch Circuit SPDT Supplier Device Package 16-QFN (2.6x1.8)
Series - Packaging Tape & Reel (TR)
Package / Case 16-UFQFN Exposed Pad Other Names 497-5968-2
Operating Temperature -55°C ~ 125°C (TA) On-State Resistance (Max) 5.2 Ohm
Number of Circuits 4 Multiplexer/Demultiplexer Circuit 2:1
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 38 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description 4 Circuit IC Switch 2:1 5.2 Ohm 16-QFN (2.6x1.8)
Current - Leakage (IS(off)) (Max) 20nA Crosstalk -78dB @ 1MHz
Charge Injection 5pC Channel-to-Channel Matching (ΔRon) 300 mOhm
Channel Capacitance (CS(off), CD(off)) 5pF Base Part Number STG3693
-3db Bandwidth 800MHz
