W3000

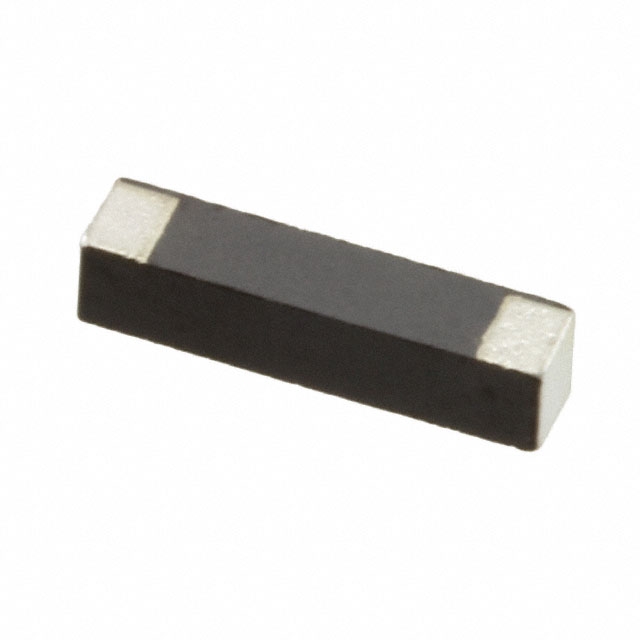

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W3000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W3000 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 868MHZ/1.575GHZ CHIP SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | 10000 pcs | ||
|---|---|---|---|---|---|
| $0.287 | $0.277 | $0.266 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | W3000 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 868MHZ/1.575GHZ CHIP SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80327 pcs | Data sheet | Antennas SourceBook® Ver 13W3000 Datasheet |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -10dB, -12dB, -12dB | Packaging | Tape & Reel (TR) |
| Other Names | 553-2577-2 W3000-ND |
Number of Bands | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.063" (1.60mm) |
| Gain | -1.4dBi, 2dBi, 2.5dBi | Frequency Range | 858MHz ~ 878MHz, 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.483GHz |
| Frequency Group | Wide Band | Frequency (Center/Band) | 868MHz, 1.575GHz, 2.4GHz |
| Features | - | Detailed Description | 868MHz, 1.575GHz, 2.4GHz Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ Chip RF Antenna 858MHz ~ 878MHz, 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.483GHz -1.4dBi, 2dBi, 2.5dBi Solder Surface Mount |
| Applications | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ | Antenna Type | Chip |
