JXD1-0005NL

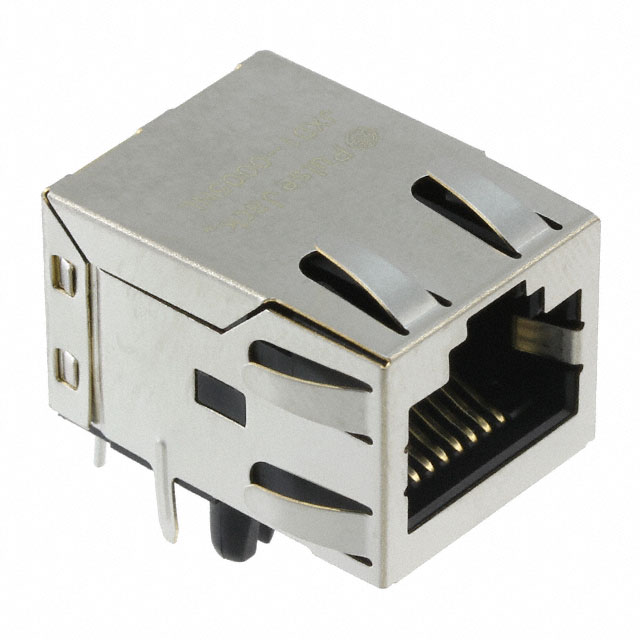

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXD1-0005NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXD1-0005NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXD1-0005NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100BASE-TX |
| Lead Free Status / RoHS Status | Lead free by exemption / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.211 | $2.123 | $1.946 | $1.858 | $1.769 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.548 | $1.504 | $1.283 | $1.194 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXD1-0005NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100BASE-TX | Lead Free Status / RoHS Status | Lead free by exemption / RoHS Compliant |
| Quantity Available | 29959 pcs | Data sheet | JXD1-0005NL |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ JXD1 |
| Packaging | Tray | Other Names | 553-3268 JXD1-0005NL-ND |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free by exemption / RoHS Compliant | LED Color | Does Not Contain LED |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Height Above Board | 0.543" (13.80mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX, AutoMDIX |
