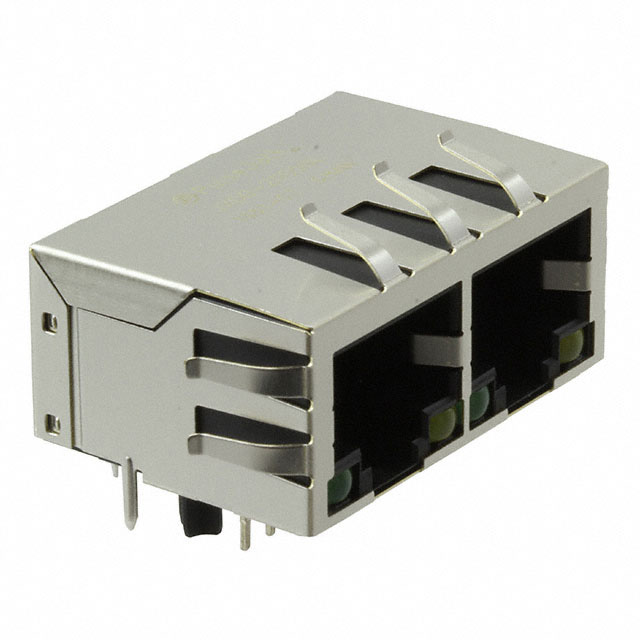

JXD0-2015NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXD0-2015NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXD0-2015NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXD0-2015NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 2PORT 1000 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $4.228 | $3.843 | $3.747 | $3.459 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $3.267 | $2.979 | $2.786 | $2.556 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXD0-2015NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 2PORT 1000 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13013 pcs | Data sheet | JXD0-2015NL DatasheetJXD Series, 1000Base-T Ethernet Product Info |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ JXD0 |
| Packaging | Tray | Other Names | 1840-1011 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 2 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Thermoplastic | Height Above Board | 0.537" (13.65mm) |
| Features | Board Guide | Detailed Description | 2 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
