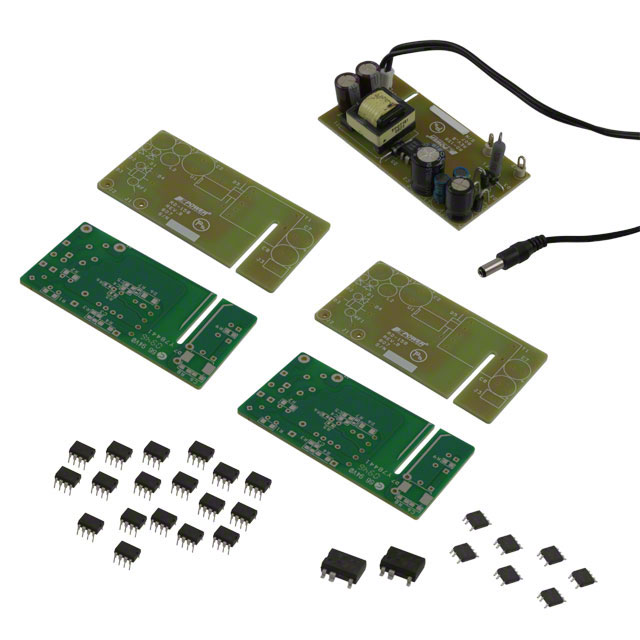

RDK-158
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RDK-158 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RDK-158 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RDK-158 |
|---|---|
| Manufacturer | Power Integrations |
| Description | KIT REF DESIGN PG LINKSWITCH-II |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RDK-158 | Manufacturer | Power Integrations |
|---|---|---|---|
| Description | KIT REF DESIGN PG LINKSWITCH-II | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4264 pcs | Data sheet | LNK603-606/613-616 |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 4.75 V ~ 5.25 V |
| Voltage - Input | 85 ~ 265 VAC | Utilized IC / Part | LNK603, LNK604, LNK605, LNK606, LNK613, LNK614, LNK615, LNK616 |
| Supplied Contents | Board(s) | Series | LinkSwitch®-II |
| Regulator Topology | Flyback | Power - Output | 5W |
| Outputs and Type | 1, Isolated | Other Names | 596-1311 RDK158 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary Side |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | 67.25kHz |
| Detailed Description | LNK603, LNK604, LNK605, LNK606, LNK613, LNK614, LNK615, LNK616 LinkSwitch®-II AC/DC, Primary Side 1, Isolated Outputs Evaluation Board | Current - Output | 1A |
| Board Type | Fully Populated |
