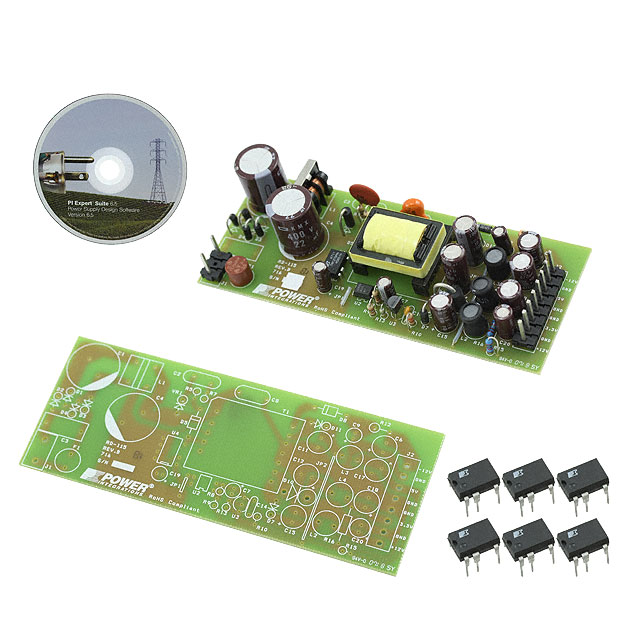

RDK-115
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RDK-115 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RDK-115 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RDK-115 |
|---|---|
| Manufacturer | Power Integrations |
| Description | KIT REFERENCE DESIGN W/TN376PN |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RDK-115 | Manufacturer | Power Integrations |
|---|---|---|---|
| Description | KIT REFERENCE DESIGN W/TN376PN | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 4451 pcs | Data sheet | TNY376PN Ref Design ReportTinySwitch-PK Family |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 3.3V, 5V, 12V, -12V |
| Voltage - Input | 85 ~ 265 VAC | Utilized IC / Part | TNY376 |
| Supplied Contents | Board(s) | Series | TinySwitch®-PK |
| Regulator Topology | Flyback | Power - Output | 7.5W |
| Outputs and Type | 4, Isolated | Other Names | 596-1145 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary Side |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Frequency - Switching | 132kHz |
| Detailed Description | TNY376 TinySwitch®-PK AC/DC, Primary Side 4, Isolated Outputs Evaluation Board | Current - Output | 500mA, 500mA, 250mA, 30mA |
| Board Type | Fully Populated |
