20M020D1U

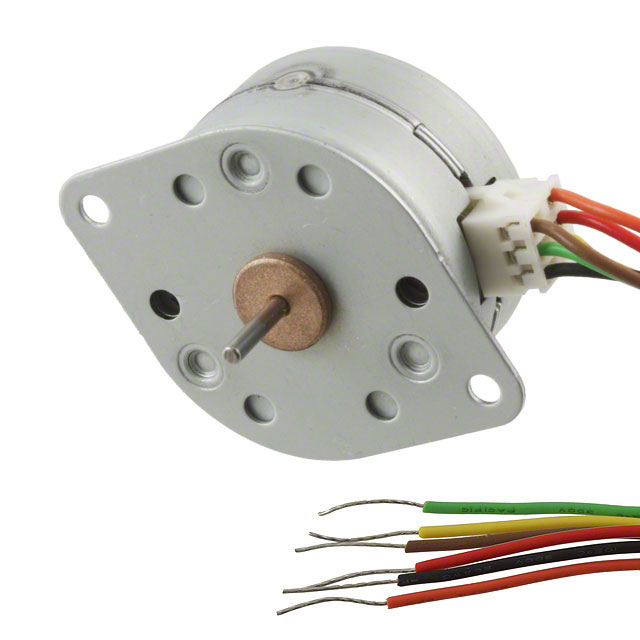

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 20M020D1U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 20M020D1U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 20M020D1U |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM UNIPOLAR 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $8.781 | $8.513 | $7.981 | $7.715 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $7.449 | $7.183 | $7.076 | $6.917 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 20M020D1U | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM UNIPOLAR 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4973 pcs | Data sheet | 20M Series Wiring DiagramCanStack Motor Part Numbering20M020D Spec.Can Stack Stepper Speed vs Torque Curves |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.052 lb (23.59g) |
| Voltage - Rated | 5VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 1.1 / 7.77 | Termination Style | Wire Leads |
| Steps per Revolution | 20 | Step Angle | 18° |
| Size / Dimension | Round - 0.807" Dia (20.50mm) | Series | 20M |
| Rotor Inertia | 0.41gcm² | Other Names | 403-1001 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 0.984" (25.00mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Length - Shaft and Bearing | 0.335" (8.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.059" (1.50mm) | Detailed Description | Unipolar Stepper Motor 100mA 5VDC |
| Current Rating | 100mA | Coil Type | Unipolar |
| Coil Resistance | 115.2 Ohms | Approvals | - |
| Accuracy | ±12% |
