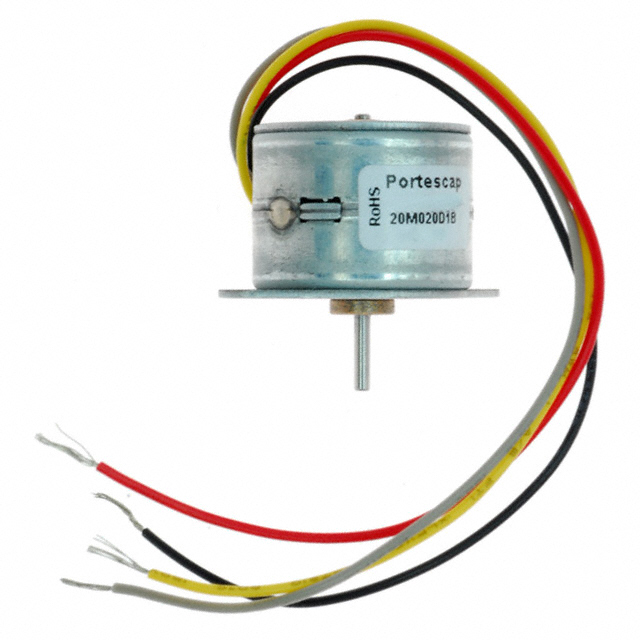

20M020D1B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 20M020D1B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 20M020D1B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 20M020D1B |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM BIPOLAR 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $8.151 | $7.904 | $7.411 | $7.163 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $6.916 | $6.669 | $6.571 | $6.422 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 20M020D1B | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5786 pcs | Data sheet | 20M Series Wiring DiagramCanStack Motor Part Numbering20M020D Spec.Can Stack Stepper Speed vs Torque Curves |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.052 lb (23.59g) |
| Voltage - Rated | 5VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 1.55 / 10.95 | Termination Style | Wire Leads |
| Steps per Revolution | 20 | Step Angle | 18° |
| Size / Dimension | Round - 0.807" Dia (20.50mm) | Series | 20M |
| Rotor Inertia | 0.41gcm² | Other Names | 403-1002 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 0.984" (25.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Length - Shaft and Bearing | 0.335" (8.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.059" (1.50mm) |
| Detailed Description | Bipolar Stepper Motor 250mA 5VDC | Current Rating | 250mA |
| Coil Type | Bipolar | Coil Resistance | 20 Ohms |
| Approvals | - | Accuracy | ±12% |
