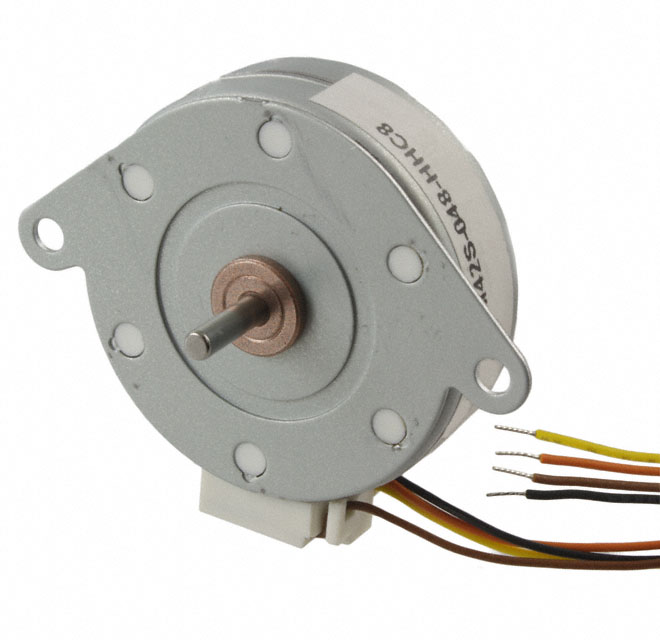

PM42S-048-HHC8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM42S-048-HHC8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM42S-048-HHC8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM42S-048-HHC8 |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEPPER MOTOR PM BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $13.474 | $13.243 | $13.01 | $12.778 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $12.546 | $12.36 | $12.081 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM42S-048-HHC8 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3071 pcs | Data sheet | PM42S-048-HHC8PM Motor Selection GuidePM Series Drive Circuitry, Wiring |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | - |
| Voltage - Rated | 24VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 9.3 / 66 | Termination Style | Wire Leads |
| Steps per Revolution | 48 | Step Angle | 7.5° |
| Size / Dimension | Round - 1.650" Dia (42.00mm) | Series | PM |
| Rotor Inertia | - | Other Names | P14342 PM42S-048-HHC8B PM42S048HHC8 |
| Operating Temperature | - | Mounting Hole Spacing | 1.950" (49.48mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Shaft and Bearing | 0.472" (12.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.118" (3.00mm) |
| Detailed Description | Bipolar Stepper Motor 600mA 24VDC | Current Rating | 600mA |
| Coil Type | Bipolar | Coil Resistance | 8 Ohms |
| Approvals | - | Accuracy | - |
