Home > Products > Connectors, Interconnects > Terminal Blocks - Wire to Board > 1862330

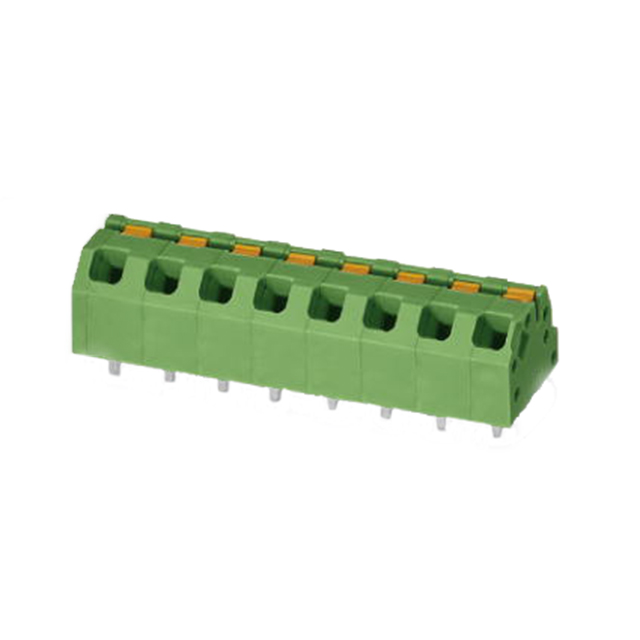

1862330

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1862330 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1862330
Manufacturer	Phoenix Contact
Description	PCB TERMINAL BLOCK 8POS 5MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 42869 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs
	$1.141	$1.093	$1.063	$0.993
	$0.914	$0.844	$0.805	$0.755

Product parameter
Data sheet

Product parameter

Part Number	1862330	Manufacturer	Phoenix Contact
Description	PCB TERMINAL BLOCK 8POS 5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42869 pcs	Data sheet	1862330 Datasheet
Category	Connectors, Interconnects	Wire Termination	Screwless - Leg Spring, Push-In Spring
Wire Gauge	16-24 AWG	Voltage	300V
Torque - Screw	-	Series	COMBICON SPTAF IL
Screw Thread	-	Screw Material - Plating	-
Positions Per Level	8	Pitch	0.197" (5.00mm)
Packaging	Bulk	Other Names	277-12145 SPTAF 1/ 8-5,0-IL
Operating Temperature	-	Number of Levels	1
Mounting Type	Through Hole	Mating Orientation	45° (135°) Angle with Board
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Features	Interlocking (Side)
Detailed Description	8 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole	Current	8A
Contact Material - Plating	-	Color	Green
Clamp Material - Plating	-
