Home > Products > Connectors, Interconnects > Terminal Blocks - Wire to Board > 1862343

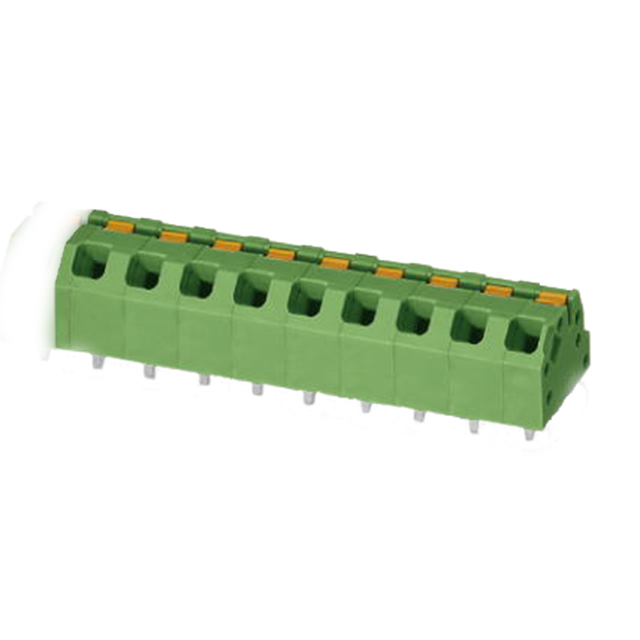

1862343

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1862343 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1862343
Manufacturer	Phoenix Contact
Description	PCB TERMINAL BLOCK 9POS 5MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 43213 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs
	$1.278	$1.22	$1.187	$1.109
	$1.021	$0.943	$0.899	$0.843

Product parameter
Data sheet

Product parameter

Part Number	1862343	Manufacturer	Phoenix Contact
Description	PCB TERMINAL BLOCK 9POS 5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43213 pcs	Data sheet	1862343 Datasheet
Category	Connectors, Interconnects	Wire Termination	Screwless - Leg Spring, Push-In Spring
Wire Gauge	16-24 AWG	Voltage	300V
Torque - Screw	-	Series	COMBICON SPTAF IL
Screw Thread	-	Screw Material - Plating	-
Positions Per Level	9	Pitch	0.197" (5.00mm)
Packaging	Bulk	Other Names	277-12146 SPTAF 1/ 9-5,0-IL
Operating Temperature	-	Number of Levels	1
Mounting Type	Through Hole	Mating Orientation	45° (135°) Angle with Board
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Features	Interlocking (Side)
Detailed Description	9 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole	Current	8A
Contact Material - Plating	-	Color	Green
Clamp Material - Plating	-
