ELL-4LG6R2NA

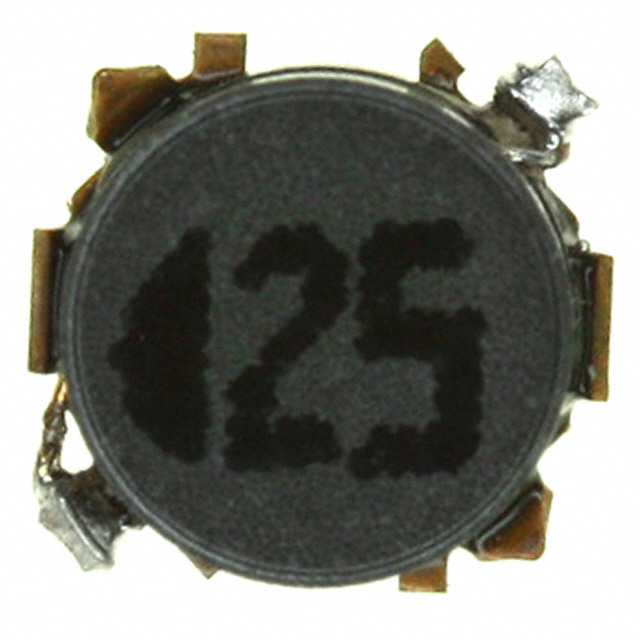

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-4LG6R2NA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-4LG6R2NA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-4LG6R2NA |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 6.2UH 1.1A 140 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.25 | $0.218 | $0.156 | $0.131 | $0.106 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-4LG6R2NA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 6.2UH 1.1A 140 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 189841 pcs | Data sheet | ELL-4FG, GG, LG Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | PCD2219CT |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 6.2µH | Height - Seated (Max) | 0.071" (1.80mm) |
| Frequency - Self Resonant | - | Detailed Description | 6.2µH Shielded Wirewound Inductor 1.1A 140 mOhm Nonstandard |
| DC Resistance (DCR) | 140 mOhm | Current Rating | 1.1A |
| Current - Saturation | 930mA |
