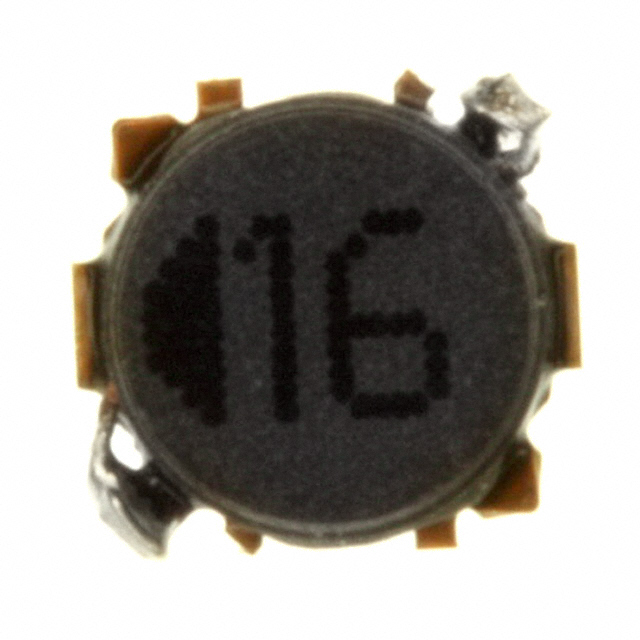

ELL-4LG3R3NA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-4LG3R3NA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-4LG3R3NA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-4LG3R3NA |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 3.3UH 1.45A 72 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.252 | $0.219 | $0.157 | $0.131 | $0.106 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-4LG3R3NA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 3.3UH 1.45A 72 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 179119 pcs | Data sheet | ELL-4FG, GG, LG Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | PCD2217DKR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 3.3µH | Height - Seated (Max) | 0.071" (1.80mm) |
| Frequency - Self Resonant | - | Detailed Description | 3.3µH Shielded Wirewound Inductor 1.45A 72 mOhm Nonstandard |
| DC Resistance (DCR) | 72 mOhm | Current Rating | 1.45A |
| Current - Saturation | 1.3A |
