ELL-4LG470MA

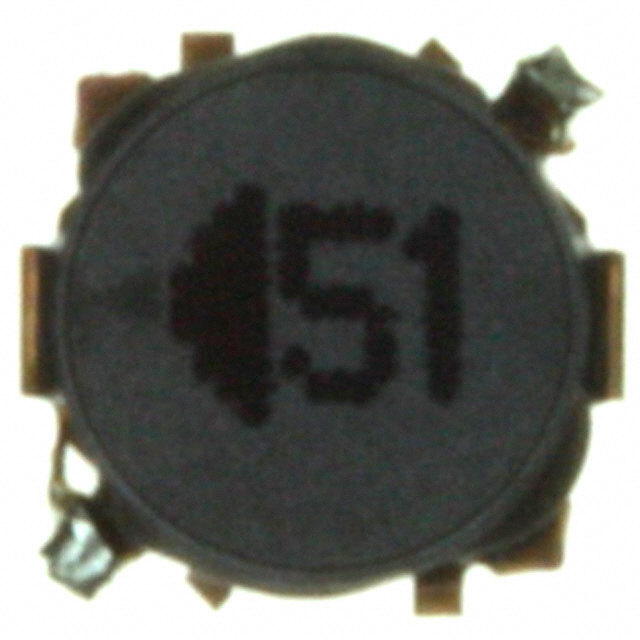

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-4LG470MA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-4LG470MA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-4LG470MA |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 47UH 410MA 920 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.087 | $0.085 | $0.082 | $0.079 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-4LG470MA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 47UH 410MA 920 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 300593 pcs | Data sheet | ELL-4FG, GG, LG Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | ELL4LG470MA PCD2224TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 47µH |
| Height - Seated (Max) | 0.071" (1.80mm) | Frequency - Self Resonant | - |
| Detailed Description | 47µH Shielded Wirewound Inductor 410mA 920 mOhm Nonstandard | DC Resistance (DCR) | 920 mOhm |
| Current Rating | 410mA | Current - Saturation | 360mA |
