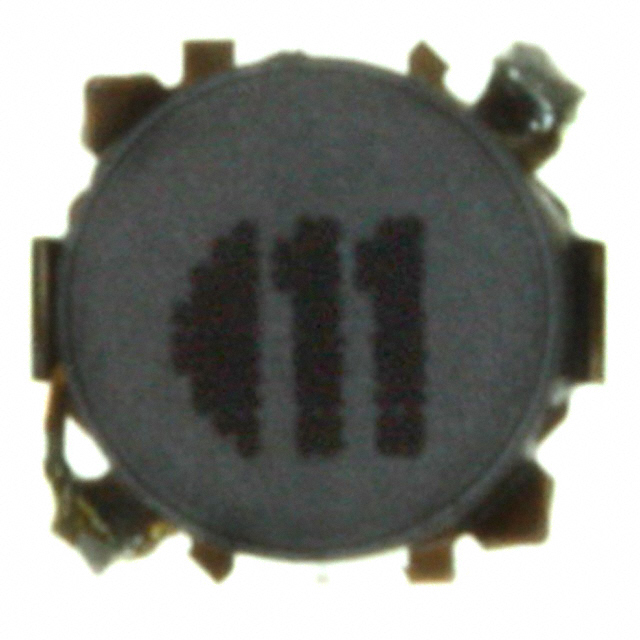

ELL-4LG2R2NA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-4LG2R2NA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-4LG2R2NA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-4LG2R2NA |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 2.2UH 1.7A 55 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.26 | $0.227 | $0.162 | $0.136 | $0.11 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-4LG2R2NA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 2.2UH 1.7A 55 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 177040 pcs | Data sheet | ELL-4FG, GG, LG Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | PCD2215CT |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 2.2µH | Height - Seated (Max) | 0.071" (1.80mm) |
| Frequency - Self Resonant | - | Detailed Description | 2.2µH Shielded Wirewound Inductor 1.7A 55 mOhm Nonstandard |
| DC Resistance (DCR) | 55 mOhm | Current Rating | 1.7A |
| Current - Saturation | 1.5A |
