EEV-TG2A221M

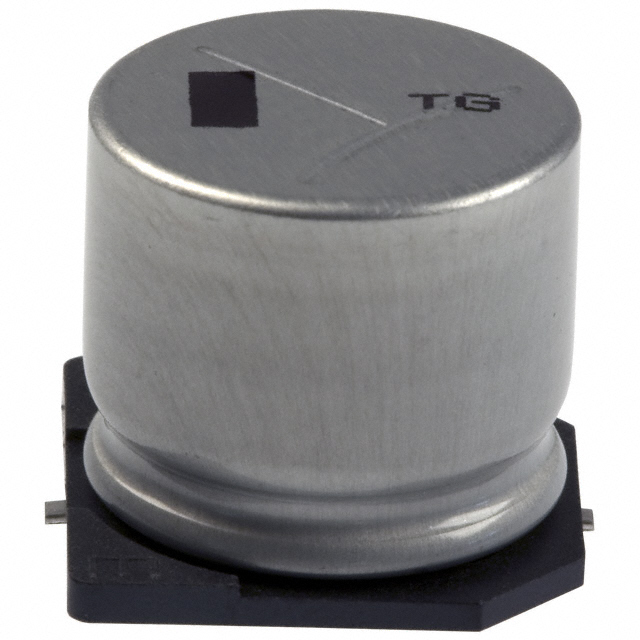

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EEV-TG2A221M with confidence from Components-World.HK, 1 Year Warranty
Dowload EEV-TG2A221M Details in PDFSee Product Specifications for product details.
Buy EEV-TG2A221M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EEV-TG2A221M |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 220UF 20% 100V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 125 pcs | 250 pcs | 625 pcs | 875 pcs | |
|---|---|---|---|---|---|
| $0.603 | $0.517 | $0.46 | $0.431 | ||
| 1250 pcs | 3125 pcs | 6250 pcs | |||
| $0.402 | $0.388 | $0.373 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EEV-TG2A221M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 220UF 20% 100V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97321 pcs | Data sheet | TG Series V Type |
| Category | Capacitors | Voltage - Rated | 100V |
| Tolerance | ±20% | Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | Series | TG |
| Ripple Current @ Low Frequency | 182mA @ 120Hz | Ripple Current @ High Frequency | 400mA @ 100kHz |
| Ratings | AEC-Q200 | Polarization | Polar |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Other Names | EEVTG2A221M PCE3698TR |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.650" (16.50mm) | ESR (Equivalent Series Resistance) | 280 mOhm @ 100kHz |
| Detailed Description | 220µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 280 mOhm @ 100kHz 2000 Hrs @ 125°C | Capacitance | 220µF |
| Applications | Automotive |
