EEV-TG2A100P

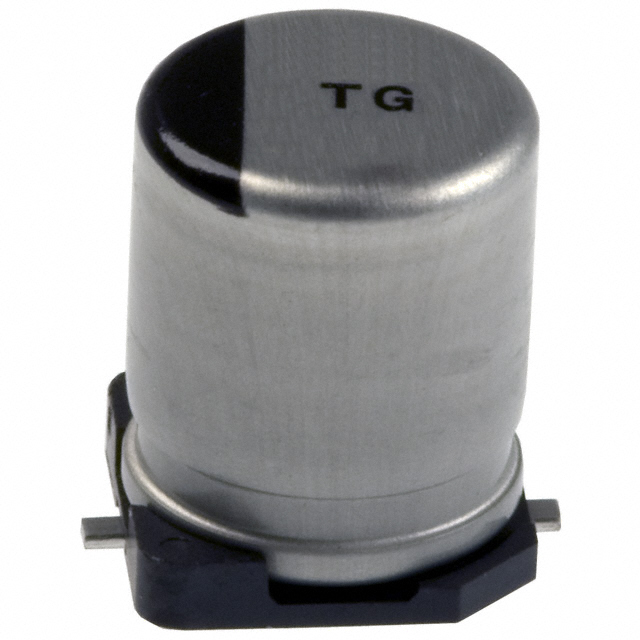

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EEV-TG2A100P with confidence from Components-World.HK, 1 Year Warranty
Dowload EEV-TG2A100P Details in PDFSee Product Specifications for product details.
Buy EEV-TG2A100P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EEV-TG2A100P |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 10UF 20% 100V SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | ||
|---|---|---|---|---|---|
| $0.131 | $0.113 | $0.106 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EEV-TG2A100P | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 10UF 20% 100V SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 186354 pcs | Data sheet | TG Series, Type V |
| Category | Capacitors | Voltage - Rated | 100V |
| Tolerance | ±20% | Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | Series | TG |
| Ripple Current @ Low Frequency | 45.5mA @ 120Hz | Ripple Current @ High Frequency | 70mA @ 100kHz |
| Ratings | AEC-Q200 | Polarization | Polar |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Other Names | EEVTG2A100P PCE3694TR |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Height - Seated (Max) | 0.402" (10.20mm) |
| ESR (Equivalent Series Resistance) | 1.3 Ohm @ 100kHz | Detailed Description | 10µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.3 Ohm @ 100kHz 2000 Hrs @ 125°C |
| Capacitance | 10µF | Applications | Automotive |
