Home > Products > Capacitors > Aluminum Electrolytic Capacitors > EEV106M025A9BAA

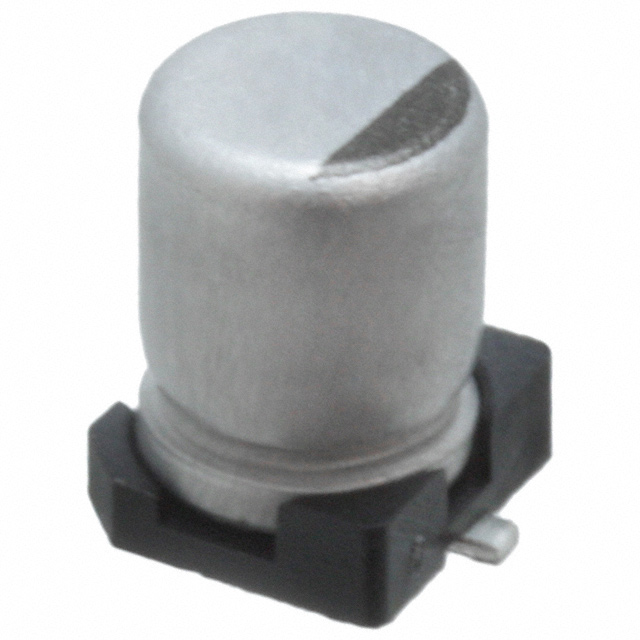

EEV106M025A9BAA

EEV106M025A9BAA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EEV106M025A9BAA with confidence from Components-World.HK, 1 Year Warranty

Dowload EEV106M025A9BAA Details in PDF

Request a Quote

Part Number	EEV106M025A9BAA
Manufacturer	KEMET
Description	CAP ALUM 10UF 20% 25V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	14000 pcs	50000 pcs	100000 pcs
~~In Stock~~ 1001385 pcs
Reference Price (In US Dollars)	2000 pcs	4000 pcs	10000 pcs
	$0.031	$0.029	$0.028
	$0.027	$0.024	$0.022

Product parameter
Data sheet

Product parameter

Part Number	EEV106M025A9BAA	Manufacturer	KEMET
Description	CAP ALUM 10UF 20% 25V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1001385 pcs	Data sheet	EEV Series
Category	Capacitors	Voltage - Rated	25V
Tolerance	±20%	Surface Mount Land Size	0.169" L x 0.217" W (4.30mm x 5.50mm)
Size / Dimension	0.157" Dia (4.00mm)	Series	EEV
Ripple Current @ Low Frequency	63mA @ 120Hz	Ripple Current @ High Frequency	90mA @ 100kHz
Ratings	-	Polarization	Polar
Packaging	Tape & Reel (TR)	Package / Case	Radial, Can - SMD
Other Names	399-6694-2 EV106M025A9BAAKPLP	Operating Temperature	-55°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lifetime @ Temp.	2000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	1.93 Ohms	Height - Seated (Max)	0.222" (5.64mm)
ESR (Equivalent Series Resistance)	1.93 Ohm @ 100kHz	Detailed Description	10µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.93 Ohm @ 100kHz 2000 Hrs @ 105°C
Capacitance	10µF	Applications	General Purpose
