EEV-TG2A101M

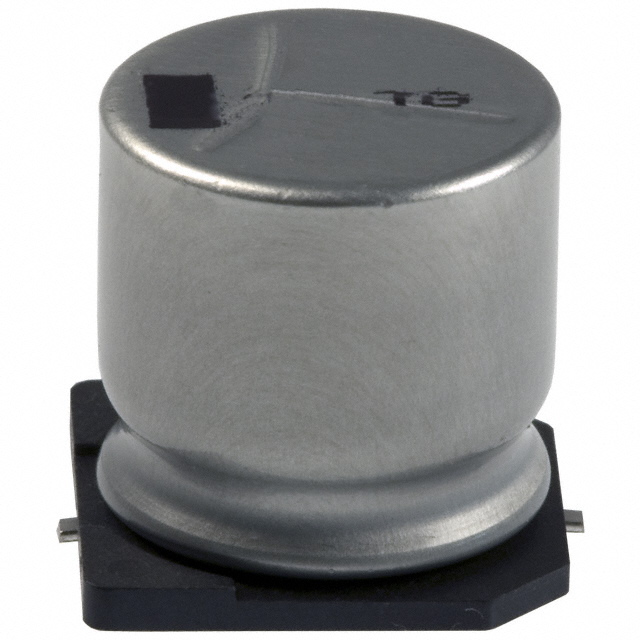

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EEV-TG2A101M with confidence from Components-World.HK, 1 Year Warranty
Dowload EEV-TG2A101M Details in PDFSee Product Specifications for product details.
Buy EEV-TG2A101M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EEV-TG2A101M |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 100UF 20% 100V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 125 pcs | 250 pcs | 625 pcs | 875 pcs | |
|---|---|---|---|---|---|
| $0.517 | $0.444 | $0.394 | $0.37 | ||
| 1250 pcs | 3125 pcs | 6250 pcs | |||
| $0.345 | $0.333 | $0.32 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EEV-TG2A101M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 100UF 20% 100V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74286 pcs | Data sheet | TG Series V Type |
| Category | Capacitors | Voltage - Rated | 100V |
| Tolerance | ±20% | Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | Series | TG |
| Ripple Current @ Low Frequency | 227.5mA @ 120Hz | Ripple Current @ High Frequency | 350mA @ 100kHz |
| Ratings | AEC-Q200 | Polarization | Polar |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Other Names | EEVTG2A101M PCE3695TR |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.650" (16.50mm) | ESR (Equivalent Series Resistance) | 300 mOhm @ 100kHz |
| Detailed Description | 100µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 300 mOhm @ 100kHz 2000 Hrs @ 125°C | Capacitance | 100µF |
| Applications | Automotive |
