APV2121S

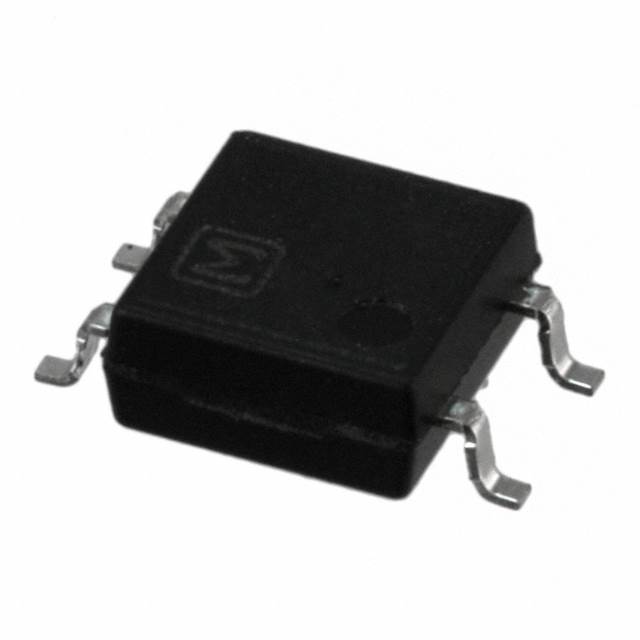

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APV2121S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APV2121S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APV2121S |
|---|---|
| Manufacturer | Panasonic |
| Description | OPTOISOLATOR 2.5KV PHVOLT 4SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 300 pcs |
|---|---|---|---|---|---|
| $0.776 | $0.689 | $0.511 | $0.444 | $0.40 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.356 | $0.306 | $0.289 | $0.278 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APV2121S | Manufacturer | Panasonic |
|---|---|---|---|
| Description | OPTOISOLATOR 2.5KV PHVOLT 4SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81655 pcs | Data sheet | APV1,2 DatasheetPhotoMOS® Dimensions |
| Category | Isolators | Voltage - Output (Max) | 8.2V |
| Voltage - Isolation | 2500Vrms | Voltage - Forward (Vf) (Typ) | 1.15V |
| Vce Saturation (Max) | - | Turn On / Turn Off Time (Typ) | 800µs, 100µs |
| Supplier Device Package | 4-SOP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 4-SMD, Gull Wing | Output Type | Photovoltaic |
| Other Names | 255-2658 | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Photovoltaic Output 2500Vrms 1 Channel 4-SOP | Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 8µA |
| Current - DC Forward (If) (Max) | 50mA |
