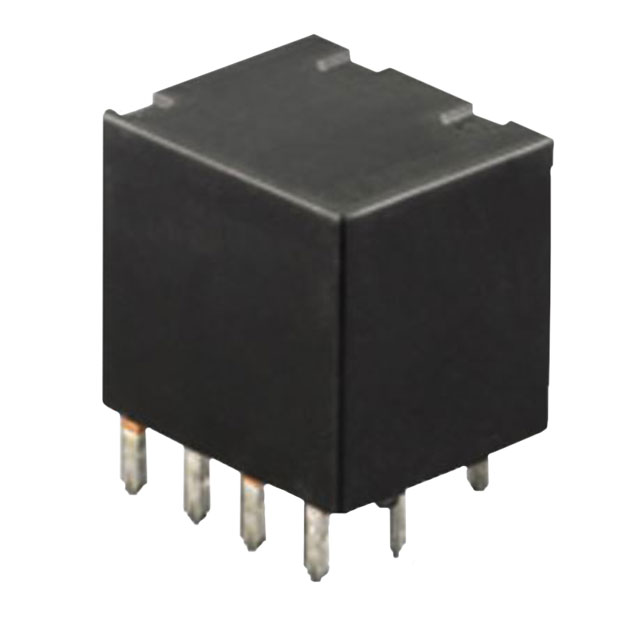

ACJ5212
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACJ5212 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACJ5212 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACJ5212 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY AUTOMOTIVE SPDTX2 20A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.998 | $1.875 | $1.666 | $1.583 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.50 | $1.333 | $1.25 | $1.167 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACJ5212 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY AUTOMOTIVE SPDTX2 20A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28538 pcs | Data sheet | ACJ Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 7.2 VDC |
| Turn Off Voltage (Min) | 1 VDC | Termination Style | PC Pin |
| Switching Voltage | 14VDC - Nom | Series | ACJ |
| Release Time | 10ms | Packaging | Tube |
| Other Names | 255-5872 ACJ5212-ND |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 10ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed |
| Contact Rating (Current) | 20A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPDT (1 Form C) x 2 | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 225 Ohms |
| Coil Power | 640 mW | Coil Current | 53.3mA |
