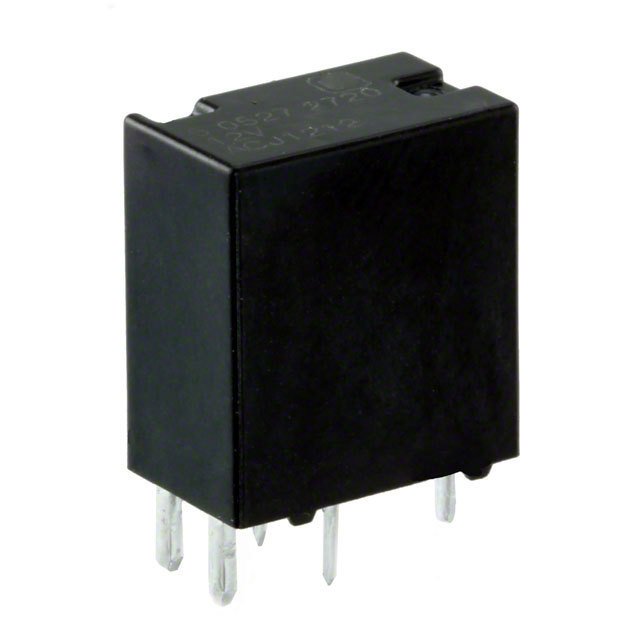

ACJ1212
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACJ1212 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACJ1212 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACJ1212 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY AUTOMOTIVE SPDT 20A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.142 | $1.07 | $0.951 | $0.904 | $0.856 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.761 | $0.714 | $0.666 | $0.642 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACJ1212 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY AUTOMOTIVE SPDT 20A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49475 pcs | Data sheet | ACJ Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 7.2 VDC |
| Turn Off Voltage (Min) | 1 VDC | Termination Style | PC Pin |
| Switching Voltage | 14VDC - Nom | Series | ACJ |
| Release Time | 10ms | Packaging | Tube |
| Other Names | 255-5159 ACJ1212-ND |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 10ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed |
| Contact Rating (Current) | 20A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 225 Ohms |
| Coil Power | 640 mW | Coil Current | 53.3mA |
