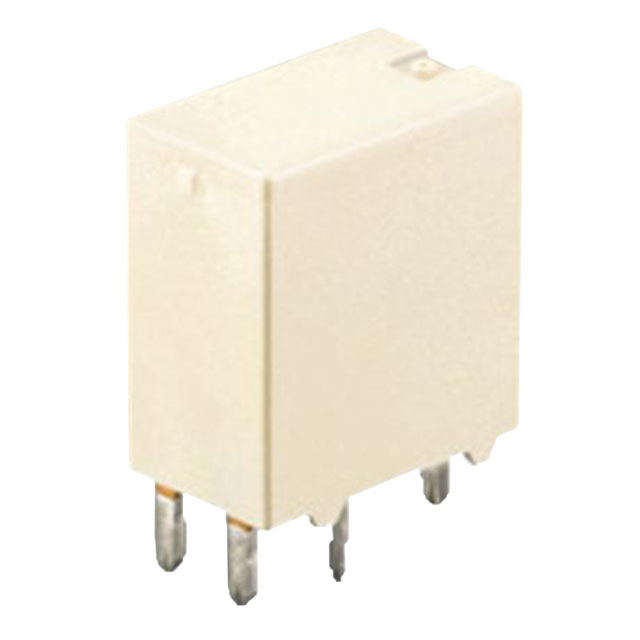

ACJ1212P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACJ1212P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACJ1212P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACJ1212P |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY AUTOMOTIVE SPDT 20A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 70 pcs | 140 pcs |
|---|---|---|---|---|---|
| $1.263 | $1.184 | $1.052 | $1.00 | $0.947 | |
| 280 pcs | 560 pcs | 1050 pcs | 5040 pcs | ||
| $0.842 | $0.789 | $0.737 | $0.71 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACJ1212P | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY AUTOMOTIVE SPDT 20A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49068 pcs | Data sheet | ACJ Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 7.2 VDC |
| Turn Off Voltage (Min) | 1 VDC | Termination Style | PC Pin |
| Switching Voltage | 14VDC - Nom | Series | ACJ |
| Release Time | 10ms | Packaging | Tube |
| Other Names | 255-5869 ACJ1212P-ND |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 10ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Flux Protection |
| Contact Rating (Current) | 20A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 225 Ohms |
| Coil Power | 640 mW | Coil Current | 53.3mA |
