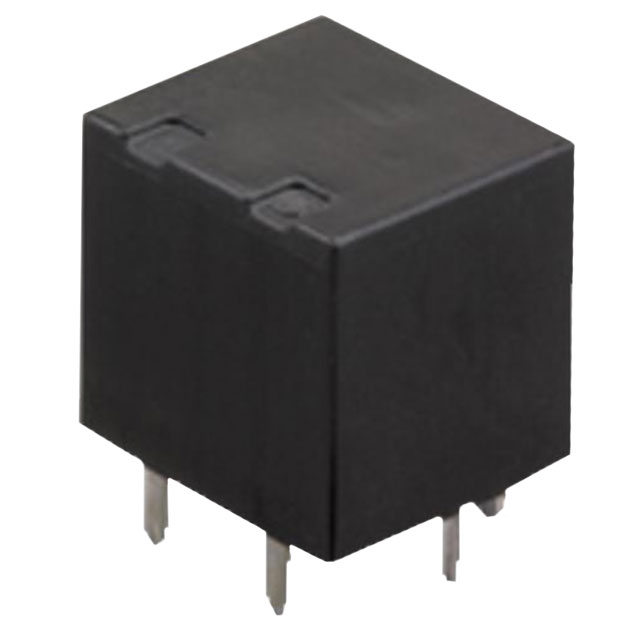

ACJ2112
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACJ2112 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACJ2112 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACJ2112 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY AUTOMOTIVE SPDTX2 20A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.511 | $1.415 | $1.258 | $1.195 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.132 | $1.006 | $0.943 | $0.881 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACJ2112 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY AUTOMOTIVE SPDTX2 20A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38985 pcs | Data sheet | ACJ Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 6.5 VDC |
| Turn Off Voltage (Min) | 0.8 VDC | Termination Style | PC Pin |
| Switching Voltage | 14VDC - Nom | Series | ACJ |
| Release Time | 10ms | Packaging | Tube |
| Other Names | 255-5160 ACJ2112-ND |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 10ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed |
| Contact Rating (Current) | 20A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPDT (1 Form C) x 2 | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 180 Ohms |
| Coil Power | 800 mW | Coil Current | 66.7mA |
