Home > Products > Switches > Snap Action, Limit Switches > D2SW-P2D

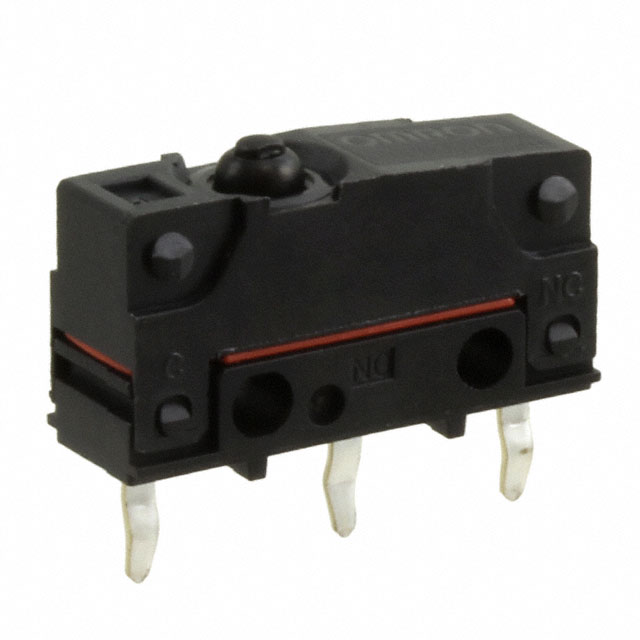

D2SW-P2D

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P2D with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2SW-P2D
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 2A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 66407 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.922	$0.85	$0.797	$0.779	$0.62
	$0.584	$0.549	$0.513	$0.478

Product parameter
Data sheet

Product parameter

Part Number	D2SW-P2D	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 2A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66407 pcs	Data sheet	D2SW-P Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	250V	Termination Style	PC Pin
Switch Function	On-Mom	Series	D2SW-P
Release Force	20gf	Pretravel	0.024" (0.6mm)
Packaging	Bulk	Overtravel	0.015" (0.4mm)
Other Names	D2SW-P2D BY OMZ D2SWP2D D2SWP2DBYOMZ Z4718	Operating Temperature	-20°C ~ 70°C
Operating Position	0.330" (8.4mm)	Operating Force	183gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	22 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	50,000 Cycles
Differential Travel	0.006" (0.15mm)	Current Rating	2A (AC/DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
