Home > Products > Switches > Snap Action, Limit Switches > D2SW-P2H

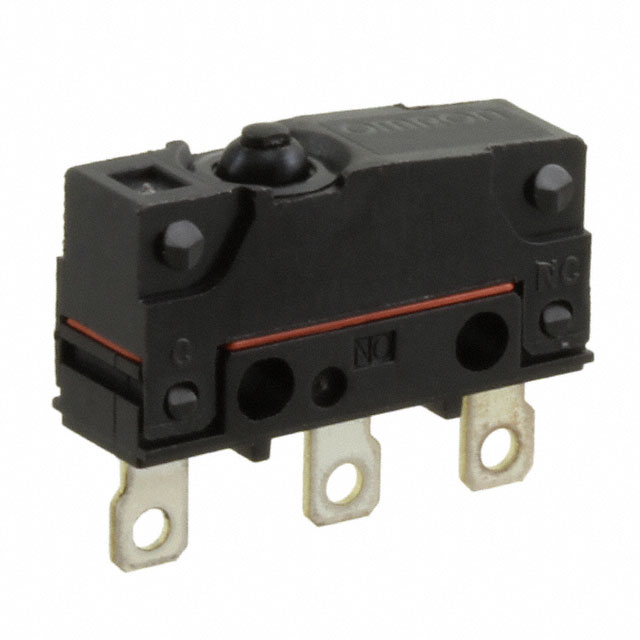

D2SW-P2H

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P2H with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2SW-P2H
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 2A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 59822 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$0.619

Product parameter
Data sheet

Product parameter

Part Number	D2SW-P2H	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 2A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59822 pcs	Data sheet	D2SW-P Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	250V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	D2SW-P
Release Force	20gf	Pretravel	0.024" (0.6mm)
Packaging	Bulk	Overtravel	0.015" (0.4mm)
Other Names	D2SW-P2H BY OMZ D2SW-P2H-ND D2SWP2H D2SWP2HBYOMZ Z4461	Operating Temperature	-20°C ~ 70°C
Operating Position	0.330" (8.4mm)	Operating Force	183gf
Mounting Type	Chassis Mount	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	50,000 Cycles	Differential Travel	0.006" (0.15mm)
Current Rating	2A (AC/DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
