Home > Products > Optoelectronics > Display Modules - LCD, OLED Character and Numeric > NHD-0420E2Z-NSW-BBW

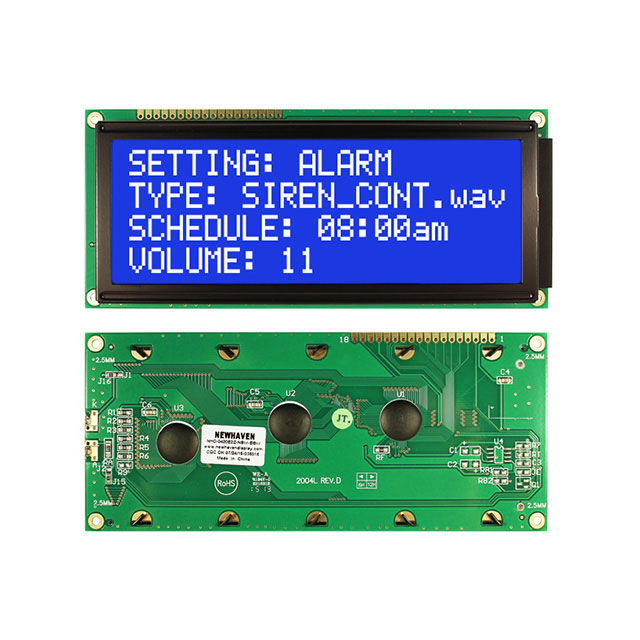

NHD-0420E2Z-NSW-BBW

NHD-0420E2Z-NSW-BBW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-0420E2Z-NSW-BBW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NHD-0420E2Z-NSW-BBW
Manufacturer	Newhaven Display, Intl.
Description	LCD MOD CHA R 4X20 WH TRANSM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 4457 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs
	$10.263	$9.647	$9.031
	$8.518	$8.108	$7.697

Product parameter
Data sheet

Product parameter

Part Number	NHD-0420E2Z-NSW-BBW	Manufacturer	Newhaven Display, Intl.
Description	LCD MOD CHA R 4X20 WH TRANSM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4457 pcs	Data sheet	NHD-0420E2Z-NSW-BBW Rev.3 NHD-0420E2Z-NSW-BBW Rev. 4
Category	Optoelectronics	Voltage - Supply	4.5 V ~ 5.5 V
Viewing Area	123.50mm L x 43.00mm W	Text Color	White
Series	-	Outline L x W x H	146.00mm x 62.50mm x 13.60mm
Other Names	NHD0420E2ZNSWBBW	Operating Temperature	-20°C ~ 70°C
Number of Characters	80	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Dot Size	0.92mm W x 1.10mm H
Display Type	STN - Super-Twisted Nematic	Display Mode	Transmissive
Display Format	20 x 4	Detailed Description	Character LCD Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 146.00mm x 62.50mm x 13.60mm
Character Size	9.22mm H x 4.84mm W	Character Format	5 x 8 Dots
Backlight	LED - White	Background Color	Blue
