Home > Products > Optoelectronics > Display Modules - LCD, OLED Character and Numeric > NHD-0420DZW-AB5

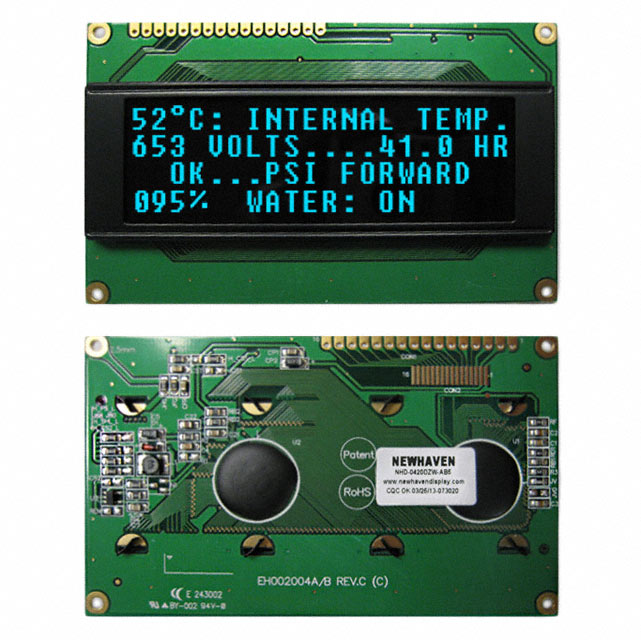

NHD-0420DZW-AB5

NHD-0420DZW-AB5

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-0420DZW-AB5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NHD-0420DZW-AB5
Manufacturer	Newhaven Display, Intl.
Description	DISPLAY OLED CHAR 4X20 BLU
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3192 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs
Reference Price (In US Dollars)	$10.988	$10.329	$9.67	$9.422

Product parameter
Data sheet

Product parameter

Part Number	NHD-0420DZW-AB5	Manufacturer	Newhaven Display, Intl.
Description	DISPLAY OLED CHAR 4X20 BLU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3192 pcs	Data sheet	NHD-0420DZW-AB5
Category	Optoelectronics	Voltage - Supply	3 V ~ 5.3 V
Viewing Area	77.00mm L x 25.20mm W	Text Color	Blue
Series	-	Outline L x W x H	98.00mm x 60.00mm x 10.00mm
Operating Temperature	-40°C ~ 80°C	Number of Characters	80
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel/Serial
Dot Size	0.54mm W x 0.55mm H	Display Type	OLED
Display Mode	Passive	Display Format	20 x 4
Detailed Description	Character LCD Display Module Passive 5 x 8 Dots OLED Without Backlight Parallel/Serial 98.00mm x 60.00mm x 10.00mm	Character Size	4.75mm H x 2.90mm W
Character Format	5 x 8 Dots	Backlight	Without Backlight
Background Color	Black
