Home > Products > Optoelectronics > Display Modules - LCD, OLED Character and Numeric > NHD-0420DZ-FSW-FBW

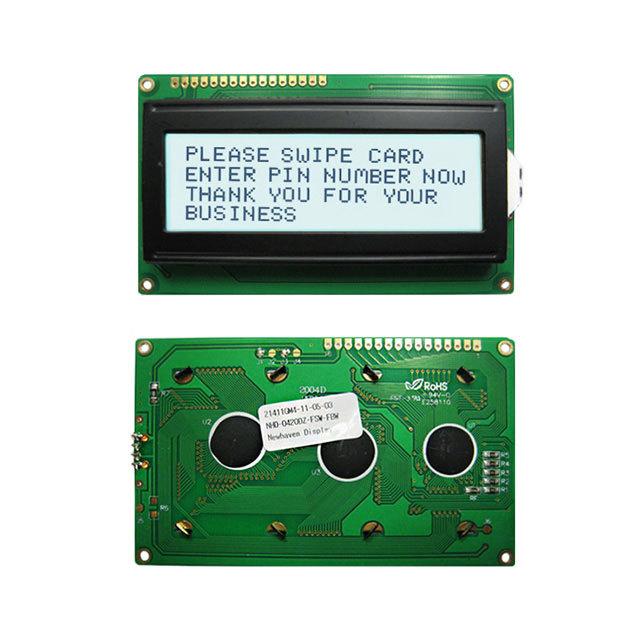

NHD-0420DZ-FSW-FBW

NHD-0420DZ-FSW-FBW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-0420DZ-FSW-FBW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NHD-0420DZ-FSW-FBW
Manufacturer	Newhaven Display, Intl.
Description	LCD MOD CHAR 4X20 WH TRANSFL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6381 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs
	$8.497	$7.987	$7.478	$7.053
	$6.713	$6.373	$6.118

Product parameter
Data sheet

Product parameter

Part Number	NHD-0420DZ-FSW-FBW	Manufacturer	Newhaven Display, Intl.
Description	LCD MOD CHAR 4X20 WH TRANSFL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6381 pcs	Data sheet	NHD-0420DZ-FSW-FBW
Category	Optoelectronics	Voltage - Supply	4.5 V ~ 5.5 V
Viewing Area	76.00mm L x 25.20mm W	Text Color	Black
Series	-	Outline L x W x H	98.00mm x 60.00mm x 14.00mm
Other Names	NHD0420DZFSWFBW Q5954993	Operating Temperature	-20°C ~ 70°C
Number of Characters	80	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Dot Size	0.55mm W x 0.55mm H
Display Type	FSTN - Film Super-Twisted Nematic	Display Mode	Transflective
Display Format	20 x 4	Detailed Description	Character LCD Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White Parallel 98.00mm x 60.00mm x 14.00mm
Character Size	4.75mm H x 2.95mm W	Character Format	5 x 8 Dots
Backlight	LED - White	Background Color	White
