Home > Products > Optoelectronics > Display Modules - LCD, OLED Character and Numeric > NHD-0420DZW-AY5

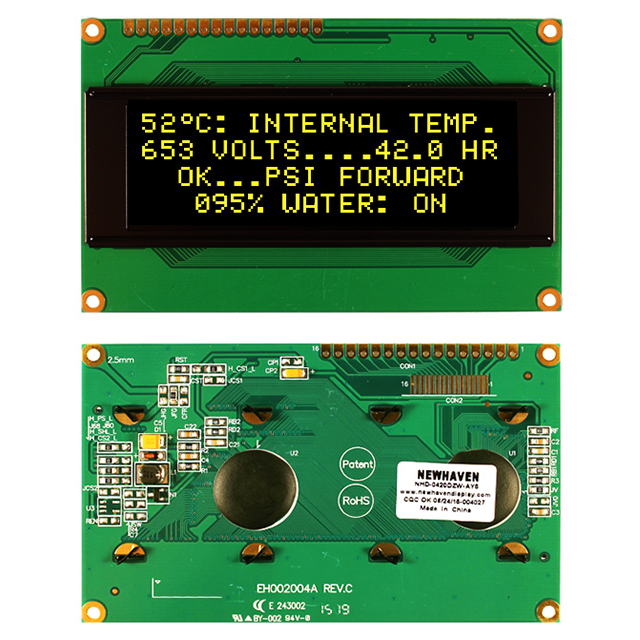

NHD-0420DZW-AY5

NHD-0420DZW-AY5

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-0420DZW-AY5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NHD-0420DZW-AY5
Manufacturer	Newhaven Display, Intl.
Description	DISPLAY OLED CHAR 4X20 YLW
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 4091 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs
	$11.05	$10.387	$9.724
	$9.171	$8.729	$8.462

Product parameter
Data sheet

Product parameter

Part Number	NHD-0420DZW-AY5	Manufacturer	Newhaven Display, Intl.
Description	DISPLAY OLED CHAR 4X20 YLW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4091 pcs	Data sheet	NHD-0420DZW-AY5
Category	Optoelectronics	Voltage - Supply	3 V ~ 5.3 V
Viewing Area	77.00mm L x 25.20mm W	Text Color	Yellow
Series	-	Outline L x W x H	98.00mm x 60.00mm x 10.00mm
Other Names	NHD0420DZWAY5	Operating Temperature	-40°C ~ 80°C
Number of Characters	80	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel/Serial	Dot Size	0.54mm W x 0.55mm H
Display Type	OLED	Display Mode	Passive
Display Format	20 x 4	Detailed Description	Character LCD Display Module Passive 5 x 8 Dots OLED Without Backlight Parallel/Serial 98.00mm x 60.00mm x 10.00mm
Character Size	4.75mm H x 2.90mm W	Character Format	5 x 8 Dots
Backlight	Without Backlight	Background Color	Black
