NX5032SD-20MHZ-STD-CSY-1

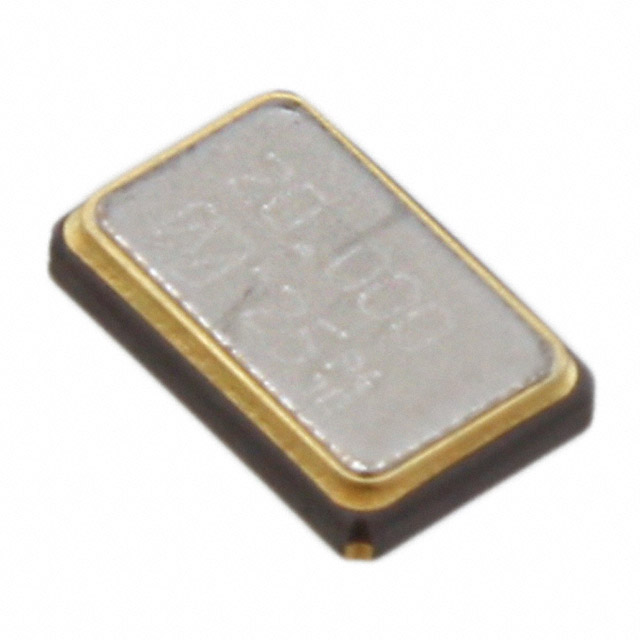

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NX5032SD-20MHZ-STD-CSY-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NX5032SD-20MHZ-STD-CSY-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NX5032SD-20MHZ-STD-CSY-1 |
|---|---|
| Manufacturer | NDK |
| Description | CRYSTAL 20.0000MHZ 12PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.243 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NX5032SD-20MHZ-STD-CSY-1 | Manufacturer | NDK |
|---|---|---|---|
| Description | CRYSTAL 20.0000MHZ 12PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78115 pcs | Data sheet | NX5032SD Series Datasheet, Auto |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.193" L x 0.122" W (4.90mm x 3.10mm) | Series | NX3225SC |
| Ratings | AEC-Q200 | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead | Other Names | 644-1196-2 NX5032SD20MHZSTDCSY1 |
| Operating Temperature | -40°C ~ 125°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Load Capacitance | 12pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.039" (1.00mm) |
| Frequency Tolerance | ±15ppm | Frequency Stability | ±50ppm |
| Frequency | 20MHz | ESR (Equivalent Series Resistance) | 80 Ohms |
| Detailed Description | 20MHz ±15ppm Crystal 12pF 80 Ohms 4-SMD, No Lead |
