NX5032SD-13.56MHZ-STD-CSY-1

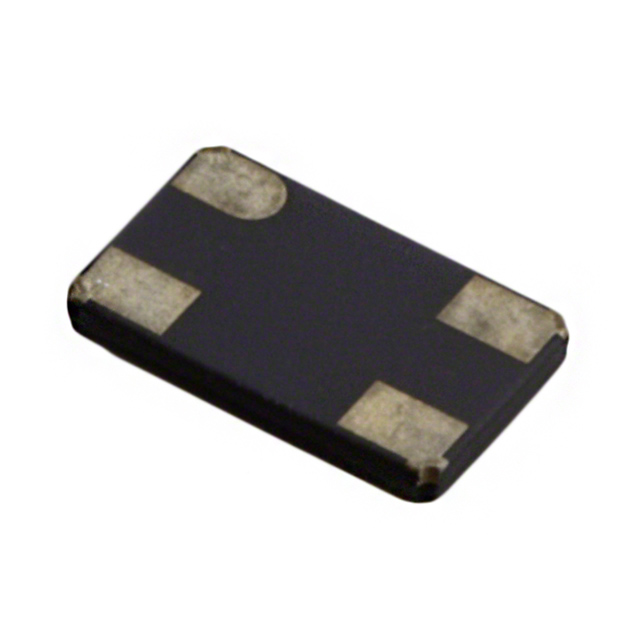

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NX5032SD-13.56MHZ-STD-CSY-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NX5032SD-13.56MHZ-STD-CSY-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NX5032SD-13.56MHZ-STD-CSY-1 |
|---|---|
| Manufacturer | NDK |
| Description | CRYSTAL 13.5600MHZ 12PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $0.467 | $0.412 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NX5032SD-13.56MHZ-STD-CSY-1 | Manufacturer | NDK |
|---|---|---|---|
| Description | CRYSTAL 13.5600MHZ 12PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91786 pcs | Data sheet | NX5032SD Series Datasheet, Auto |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.193" L x 0.122" W (4.90mm x 3.10mm) | Series | NX3225SC |
| Ratings | AEC-Q200 | Packaging | Cut Tape (CT) |
| Package / Case | 4-SMD, No Lead | Other Names | 644-1142-1 |
| Operating Temperature | -40°C ~ 125°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Capacitance | 12pF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.039" (1.00mm) | Frequency Tolerance | ±15ppm |
| Frequency Stability | ±50ppm | Frequency | 13.56MHz |
| ESR (Equivalent Series Resistance) | 120 Ohms | Detailed Description | 13.56MHz ±15ppm Crystal 12pF 120 Ohms 4-SMD, No Lead |
