NX5032GB-12MHZ-STD-CSK-5

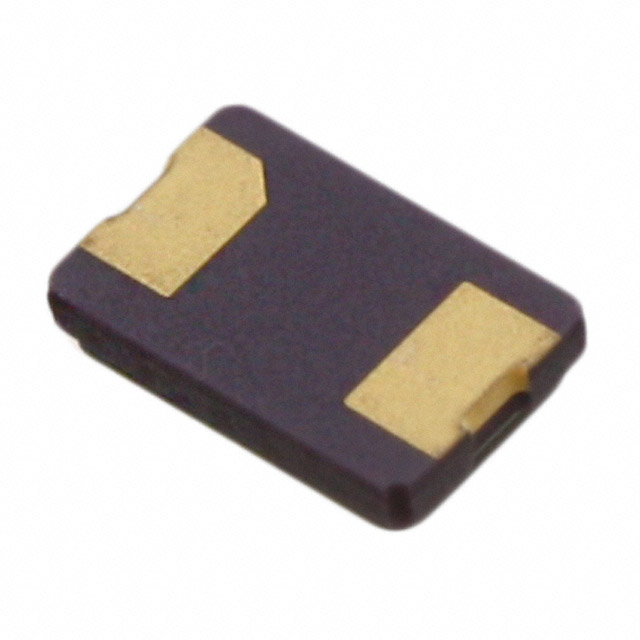

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NX5032GB-12MHZ-STD-CSK-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NX5032GB-12MHZ-STD-CSK-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NX5032GB-12MHZ-STD-CSK-5 |
|---|---|
| Manufacturer | NDK |
| Description | CRYSTAL 12.0000MHZ 8PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.262 | $0.231 | $0.215 | $0.19 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NX5032GB-12MHZ-STD-CSK-5 | Manufacturer | NDK |
|---|---|---|---|
| Description | CRYSTAL 12.0000MHZ 8PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125073 pcs | Data sheet | NX5032GB Series Datasheet |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | Series | NX5032GB |
| Ratings | - | Packaging | Cut Tape (CT) |
| Package / Case | 2-SMD, No Lead | Other Names | 644-1191-1 |
| Operating Temperature | -10°C ~ 70°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Capacitance | 8pF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.047" (1.20mm) | Frequency Tolerance | ±20ppm |
| Frequency Stability | ±30ppm | Frequency | 12MHz |
| ESR (Equivalent Series Resistance) | 100 Ohms | Detailed Description | 12MHz ±20ppm Crystal 8pF 100 Ohms 2-SMD, No Lead |
