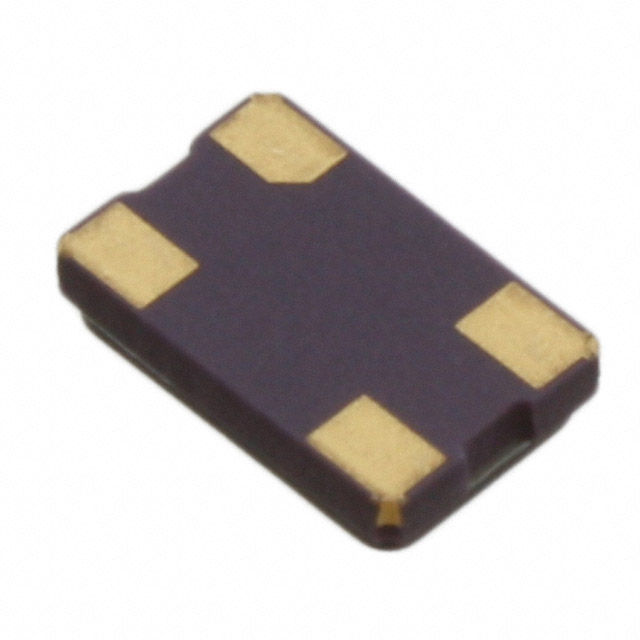

NX5032GC-12MHZ-STD-CSK-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NX5032GC-12MHZ-STD-CSK-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NX5032GC-12MHZ-STD-CSK-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NX5032GC-12MHZ-STD-CSK-6 |
|---|---|
| Manufacturer | NDK |
| Description | CRYSTAL 12.0000MHZ 8PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.135 | $0.13 | $0.126 | $0.121 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NX5032GC-12MHZ-STD-CSK-6 | Manufacturer | NDK |
|---|---|---|---|
| Description | CRYSTAL 12.0000MHZ 8PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 179079 pcs | Data sheet | NX5032GC-STD-CSK-6 |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | Series | NX5032GC |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead | Other Names | 50157417 644-1193-2 NX5032GC12MHZSTDCSK6 |
| Operating Temperature | -10°C ~ 75°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Load Capacitance | 8pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.047" (1.20mm) |
| Frequency Tolerance | ±15ppm | Frequency Stability | ±15ppm |
| Frequency | 12MHz | ESR (Equivalent Series Resistance) | 100 Ohms |
| Detailed Description | 12MHz ±15ppm Crystal 8pF 100 Ohms 4-SMD, No Lead |
