APTGT50TL601G

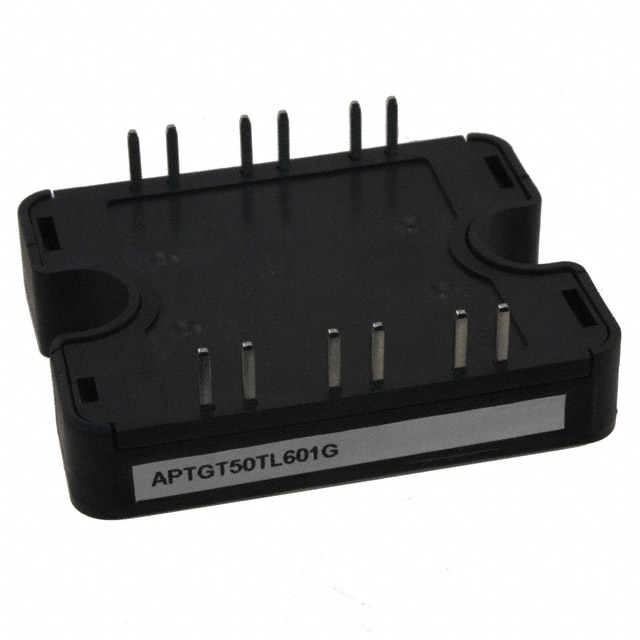

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT50TL601G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT50TL601G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT50TL601G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MODULE IGBT 600V 50A SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $19.673 | $18.515 | $17.358 | $16.548 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT50TL601G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MODULE IGBT 600V 50A SP1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2109 pcs | Data sheet | Power Products CatalogAPTGT50TL601G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A | Supplier Device Package | SP1 |
| Series | - | Power - Max | 176W |
| Package / Case | SP1 | Other Names | APTGT50TL601GMI APTGT50TL601GMI-ND |
| Operating Temperature | -40°C ~ 175°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 3.15nF @ 25V | Input | Standard |
| IGBT Type | Trench Field Stop | Detailed Description | IGBT Module Trench Field Stop Three Level Inverter 600V 80A 176W Chassis Mount SP1 |
| Current - Collector Cutoff (Max) | 250µA | Current - Collector (Ic) (Max) | 80A |
| Configuration | Three Level Inverter |
