APTGT50H60T3G

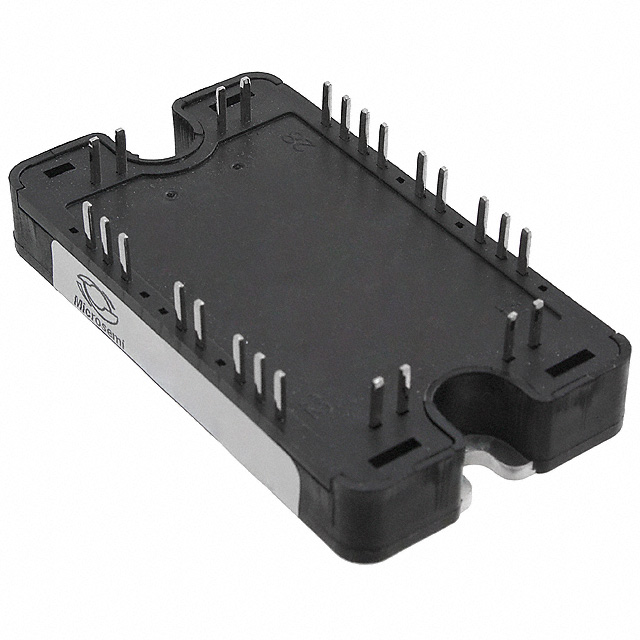

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGT50H60T3G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT50H60T3G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGT50H60T3G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MOD IGBT3 FULL BRIDGE SP3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $20.312 | $19.117 | $17.922 | $17.085 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGT50H60T3G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MOD IGBT3 FULL BRIDGE SP3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1766 pcs | Data sheet | Power Products CatalogAPTGT50H60T3G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A | Supplier Device Package | SP3 |
| Series | - | Power - Max | 176W |
| Package / Case | SP3 | Operating Temperature | -40°C ~ 175°C (TJ) |
| NTC Thermistor | Yes | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 3.15nF @ 25V |
| Input | Standard | IGBT Type | Trench Field Stop |
| Detailed Description | IGBT Module Trench Field Stop Full Bridge Inverter 600V 80A 176W Chassis Mount SP3 | Current - Collector Cutoff (Max) | 250µA |
| Current - Collector (Ic) (Max) | 80A | Configuration | Full Bridge Inverter |
