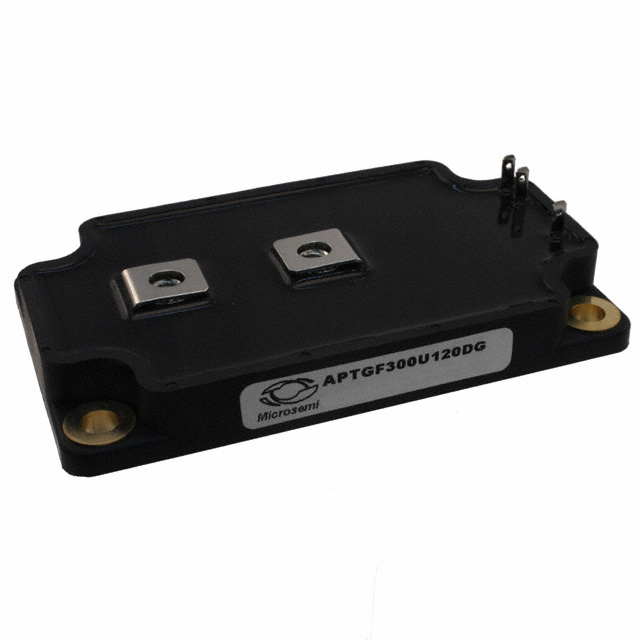

APTGF300U120DG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF300U120DG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF300U120DG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF300U120DG |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 1200V 400A 1780W SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGF300U120DG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT 1200V 400A 1780W SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4801 pcs | Data sheet | Power Products CatalogAPTGF300U120DG |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 300A | Supplier Device Package | SP6 |
| Series | - | Power - Max | 1780W |
| Package / Case | SP6 | Other Names | APTGF300U120DGMI APTGF300U120DGMI-ND |
| Operating Temperature | - | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 21nF @ 25V |
| Input | Standard | IGBT Type | NPT |
| Detailed Description | IGBT Module NPT Single 1200V 400A 1780W Chassis Mount SP6 | Current - Collector Cutoff (Max) | 500µA |
| Current - Collector (Ic) (Max) | 400A | Configuration | Single |
