APTGF30TL601G

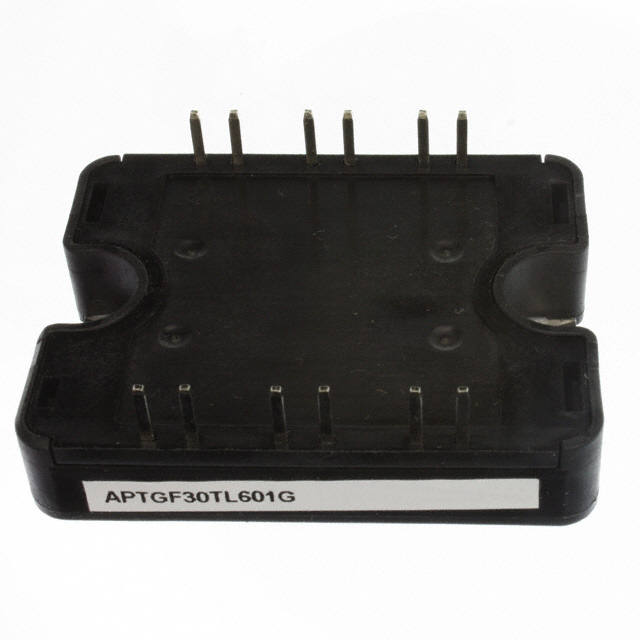

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF30TL601G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF30TL601G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF30TL601G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MODULE IGBT 600V 30A SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGF30TL601G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MODULE IGBT 600V 30A SP1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4593 pcs | Data sheet | Power Products CatalogAPTGF30TL601G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 30A | Supplier Device Package | SP1 |
| Series | - | Power - Max | 140W |
| Package / Case | SP1 | Other Names | APTGF30TL601GMI APTGF30TL601GMI-ND |
| Operating Temperature | - | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 1.35nF @ 25V |
| Input | Standard | IGBT Type | NPT |
| Detailed Description | IGBT Module NPT Three Level Inverter 600V 42A 140W Chassis Mount SP1 | Current - Collector Cutoff (Max) | 250µA |
| Current - Collector (Ic) (Max) | 42A | Configuration | Three Level Inverter |
