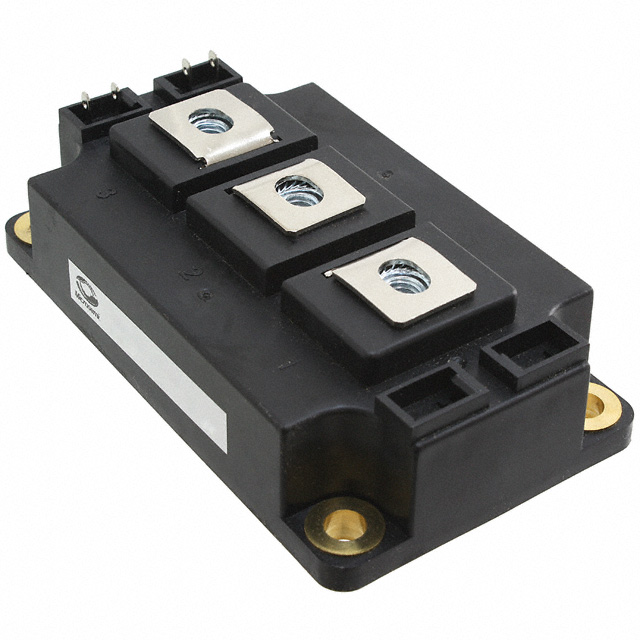

APTGF300A120D3G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF300A120D3G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF300A120D3G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF300A120D3G |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT MODULE NPT PHASE LEG D3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGF300A120D3G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT MODULE NPT PHASE LEG D3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5178 pcs | Data sheet | Power Products CatalogAPTGF300A120D3G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 300A | Supplier Device Package | D3 |
| Series | - | Power - Max | 2100W |
| Package / Case | D-3 Module | Other Names | APTGF300A120D3GMP-ND |
| Operating Temperature | - | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 19nF @ 25V |
| Input | Standard | IGBT Type | NPT |
| Detailed Description | IGBT Module NPT Half Bridge 1200V 420A 2100W Chassis Mount D3 | Current - Collector Cutoff (Max) | 5mA |
| Current - Collector (Ic) (Max) | 420A | Configuration | Half Bridge |
