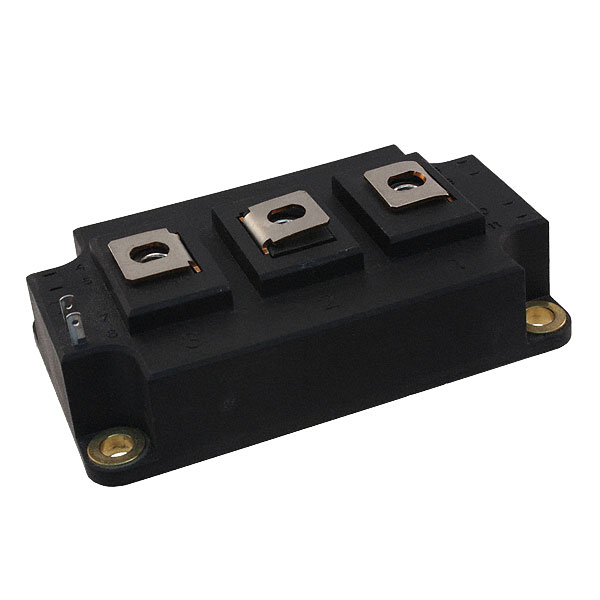

APTGF330DA60D3G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF330DA60D3G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF330DA60D3G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF330DA60D3G |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 600V 460A 1400W D3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGF330DA60D3G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT 600V 460A 1400W D3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4053 pcs | Data sheet | APTGF330DA60D3G_Rev2 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 400A | Supplier Device Package | D3 |
| Series | - | Power - Max | 1400W |
| Package / Case | D-3 Module | Other Names | APTGF330DA60D3GMP-ND |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | No |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Cies) @ Vce | 18nF @ 25V |
| Input | Standard | IGBT Type | NPT |
| Detailed Description | IGBT Module NPT Single 600V 460A 1400W Chassis Mount D3 | Current - Collector Cutoff (Max) | 750µA |
| Current - Collector (Ic) (Max) | 460A | Configuration | Single |
