JN1AS10ML2-R

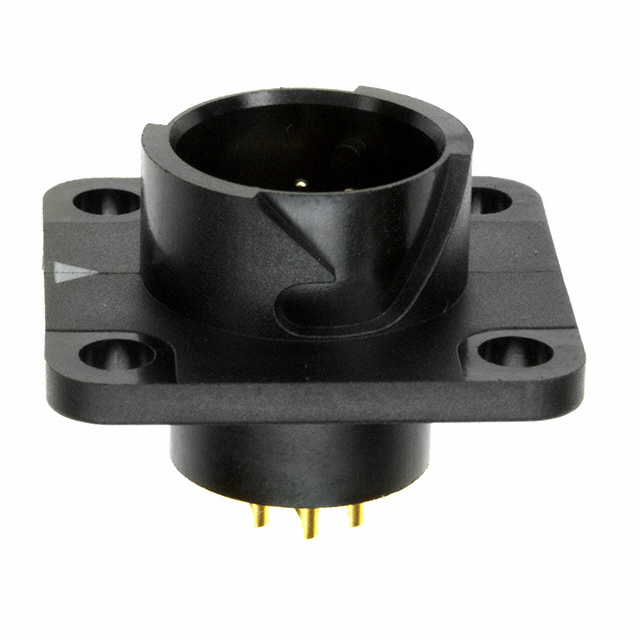

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN1AS10ML2-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN1AS10ML2-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN1AS10ML2-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 10POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.407 | $2.307 | $2.106 | $2.006 | $1.906 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.705 | $1.605 | $1.404 | $1.334 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN1AS10ML2-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 10POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23083 pcs | Data sheet | Circular ConnectorsJN1AS10ML2-R DrawingJN1 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | S |
| Shell Material | Synthetic Resin | Shell Finish | - |
| Series | JN1 | Packaging | Tray |
| Other Names | 670-1055 JN1AS10ML2 JN1AS10ML2R |
Orientation | N (Normal) |
| Operating Temperature | -20°C ~ 125°C | Number of Positions | 10 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Push-Twist |
| Detailed Description | 10 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 3A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | 0.472" (12.00mm) |
| Backshell Material, Plating | - | Applications | - |
