JN1DS10SL1

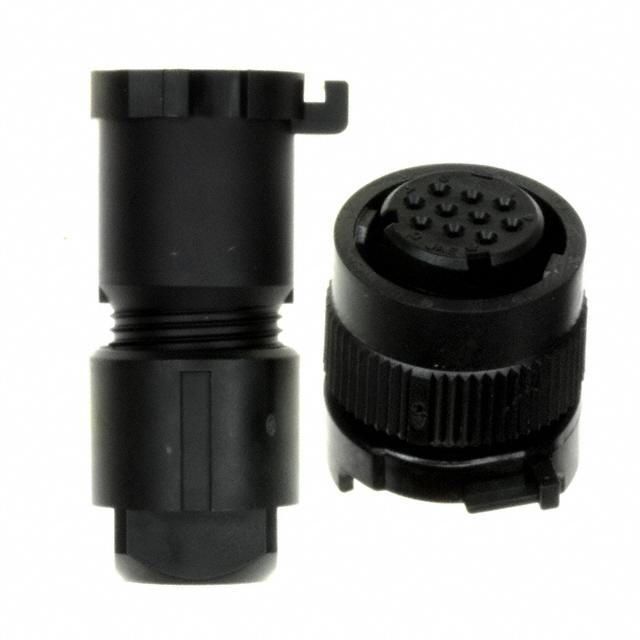

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN1DS10SL1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN1DS10SL1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN1DS10SL1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLG HSG FMALE 10POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.108 | $3.735 | $3.641 | $3.361 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.174 | $2.894 | $2.708 | $2.483 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN1DS10SL1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLG HSG FMALE 10POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12781 pcs | Data sheet | Circular ConnectorsJN1DS10SLy DrawingJN1 Series Datasheet |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | S | Shell Material | Synthetic Resin |
| Shell Finish | - | Series | JN1 |
| Packaging | Tray | Other Names | 670-1060 |
| Orientation | N (Normal) | Operating Temperature | -20°C ~ 125°C |
| Number of Positions | 10 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | Backshell, Coupling Nut | Fastening Type | Push-Twist |
| Detailed Description | 10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut | Coupling Nut Material, Plating | Synthetic Resin |
| Coupling Nut Diameter | 0.748" (19.00mm) | Contact Type | Crimp |
| Contact Size | 22 | Contact Shape | Circular |
| Connector Type | Plug Housing |
