JN1AS04MK1

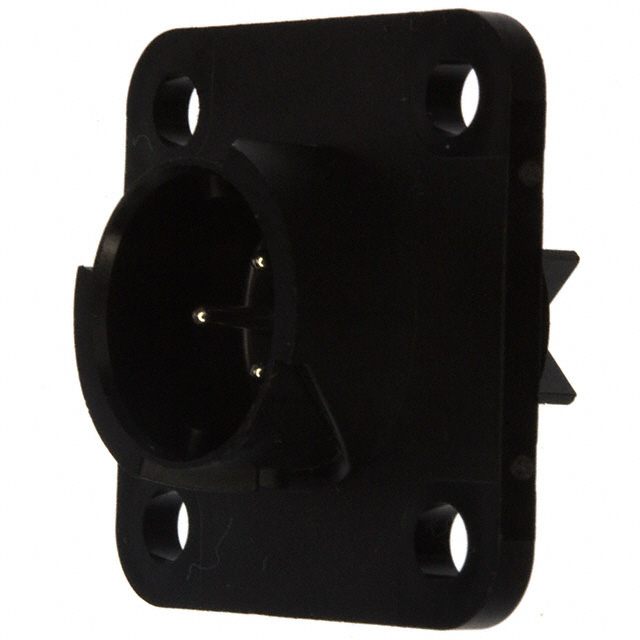

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN1AS04MK1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN1AS04MK1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN1AS04MK1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.183 | $2.093 | $1.911 | $1.82 | $1.729 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.547 | $1.456 | $1.274 | $1.21 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN1AS04MK1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27423 pcs | Data sheet | Circular ConnectorsJN1AS04MK1 DrawingJN1 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | S |
| Shell Material | Synthetic Resin | Shell Finish | - |
| Series | JN1 | Packaging | Tray |
| Other Names | 670-1053 | Orientation | N (Normal) |
| Operating Temperature | -20°C ~ 125°C | Number of Positions | 4 (3 + PE) |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Push-Twist |
| Detailed Description | 4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | 0.591" (15.00mm) |
| Backshell Material, Plating | - | Applications | - |
