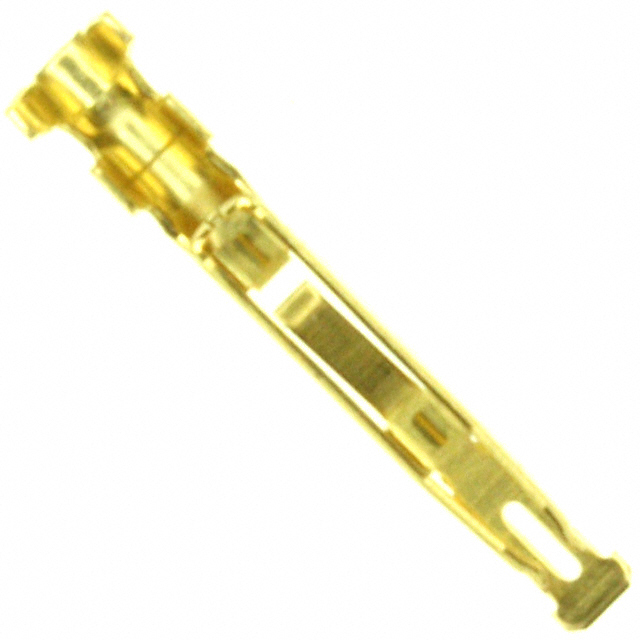

JN1-22-26S-PKG100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN1-22-26S-PKG100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN1-22-26S-PKG100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN1-22-26S-PKG100 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONTACT SOCKET 26-28AWG CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.143 | $0.135 | $0.116 | $0.099 | $0.095 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.085 | $0.081 | $0.068 | $0.062 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN1-22-26S-PKG100 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONTACT SOCKET 26-28AWG CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 334843 pcs | Data sheet | JN1-22-2yS-x10000 DrawingJN1 Series Datasheet |
| Category | Connectors, Interconnects | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - Coaxial | - | Wire Gauge or Range - AWG | 26-28 AWG |
| Type | Signal, Stamped | Termination Finish | Nickel |
| Series | JN1 | Packaging | Bulk |
| Other Names | 670-1052 JN12226SPKG100 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation Support | Detailed Description | Socket Contact 26-28 AWG Size 22 Crimp Gold |
| Contact Type | Socket | Contact Termination | Crimp |
| Contact Size | 22 | Contact Material | Copper Alloy |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
